FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION [3HB]

id091100815106

1.  To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 110 mm {4.33 in}.

am2zzw00003381

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [3HB].)

(3)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION [3HB].)

4.  Remove the clips securing the front door wiring harness from the front door module panel.

am2zzw00003382

5.  Remove the screws.

am2zzw00003383

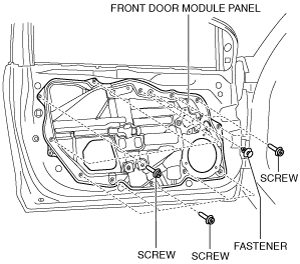

6.  Remove the fastener.

7.  Remove the front door module panel.

8.  Remove the front power window motor. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION [3HB].)

9.  Remove the front power window regulator. (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION [3HB].)

10.  Install in the reverse order of removal.
