POWER OUTER MIRROR SWITCH INSPECTION [3HB]

id0912004205z3

1.  Disconnect the negative battery cable.

2.  Remove the inner garnish. (driver-side) (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the front door trim. (driver-side) (See FRONT DOOR TRIM REMOVAL/INSTALLATION [3HB].)

4.  Remove the switch panel. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY [3HB].)

5.  Using a tester, verify that the continuity between the power outer mirror switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION.)

L.H.D.

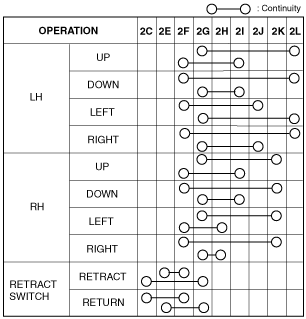

am2zzw00005839

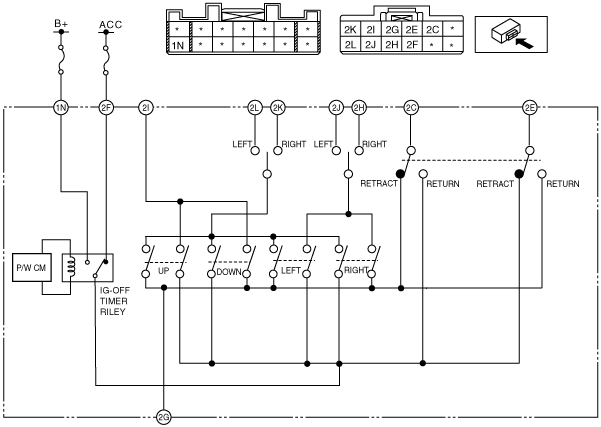

am2zzw00005840

R.H.D.

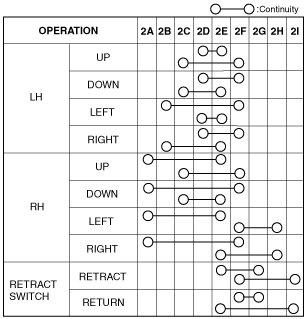

am2zzw00005841

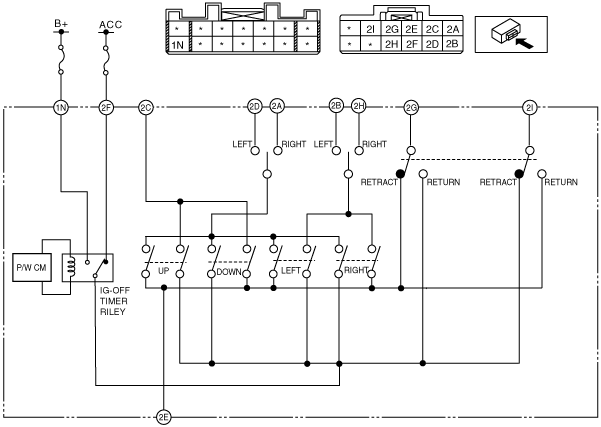

am2zzw00005842
