KEYLESS ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM]

id0914004405b0

Vehicle Interior, Front

1.  Disconnect the negative battery cable.

2.  Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)

3.  Remove the front console component. (See FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

am2zzw00006270

5.  Remove the keyless antenna (2) in the direction of the arrow shown in the figure while pressing the keyless antenna tabs (1).

6.  Install in the reverse order of removal.

Vehicle Interior, Rear

1.  Disconnect the negative battery cable.

2.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

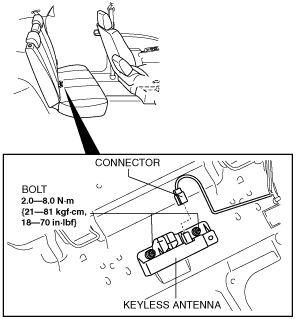

am2zzw00003295

4.  Remove the bolts.

5.  Remove the keyless antenna.

6.  Install in the reverse order of removal.

Vehicle Exterior, Rear

1.  Disconnect the negative battery cable.

2.  Disconnect the connector.

am2zzw00003296

3.  Remove the screw.

4.  Remove the keyless antenna.

5.  Install in the reverse order of removal.

Vehicle Exterior, Driver's Door/Passenger's Door

Note

•  The keyless antenna (vehicle exterior, driver's door/passenger's door) is built into the front outer handle. (See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)

am2zzw00000552
