FRONT CONSOLE COMPONENT REMOVAL/INSTALLATION

id091700458500

L.H.D.

1.  Shift lever to neutral position. (MTX)

2.  Remove the following parts:

(1)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(2)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(3)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].)

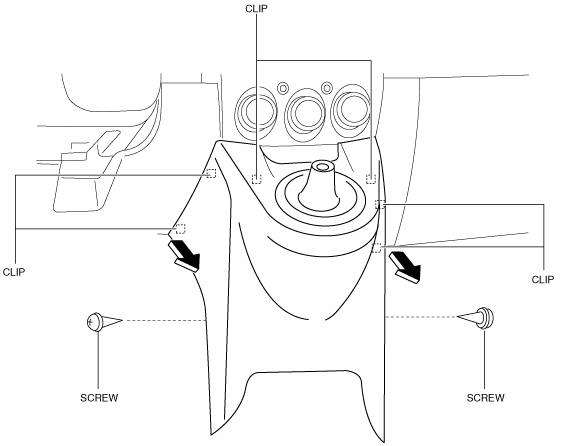

3.  Remove the screws, then pull the lower side of the front console component in the direction of the arrow, and remove the clips.

am2uuw00000710

Caution

•  Affix protective tape to the AT shift panel to prevent scratches or damage. (ATX)

am2uuw00001090

4.  Install the boot panel and front console as a single unit.

5.  Install in the reverse order of removal.

R.H.D.

1.  Shift lever to neutral position. (MTX)

2.  Remove the following parts:

(1)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [B65M-R].)

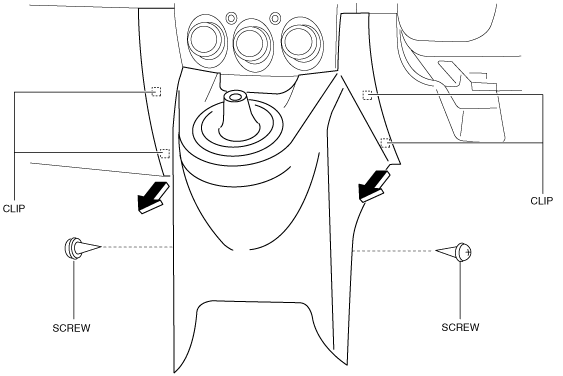

3.  Remove the screws, pull the lower side of the front console component in the direction of the arrow, and remove the clips.

am2zzw00002651

Caution

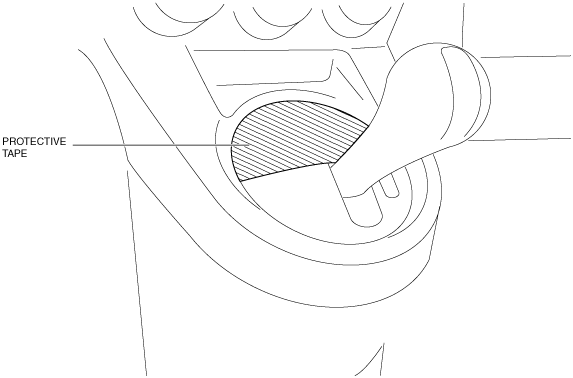

•  Affix protective tape to the AT shift panel to prevent scratches or damage. (ATX)

am2zzw00002652

4.  Pull the front console assembly in the direction of the arrow in the figure and remove it while detaching the clips.

am2zzw00002653

5.  Install the boot panel and front console as a single unit.

6.  Install in the reverse order of removal.
