SHOCK ABSORBING PAD REMOVAL/INSTALLATION
id091700453300
1. Remove the following parts:
- (1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (2) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (3) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (4) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (5) Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (6) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (7) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (8) Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
- (9) Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)
- (10) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (11) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (12) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (13) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (14) Rain sensor cover (Vehicles with auto light / wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION.)
- (15) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (16) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

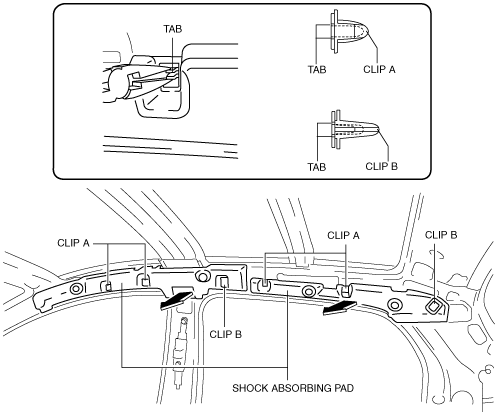

2. Pinch the tab using pincers, remove clips A and B, then remove the shock-absorbing pad in the direction of the arrow shown in the figure.
3. Install in the reverse order of removal.
