LUBRICATION SYSTEM LOCATION INDEX [SKYACTIV-X 2.0]

id0111hf800100

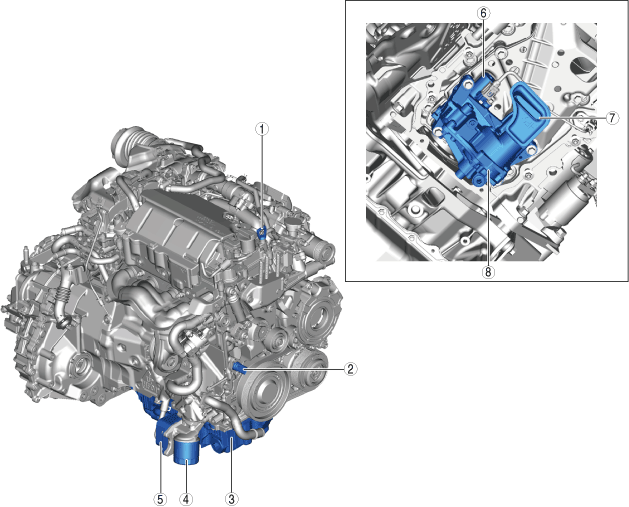

am3zzw00034976

1	Dipstick (See ENGINE OIL LEVEL INSPECTION [SKYACTIV-X 2.0].) (See ENGINE OIL REPLACEMENT [SKYACTIV-X 2.0].)
2	Engine oil temperature sensor/engine oil pressure sensor (See OIL PRESSURE INSPECTION [SKYACTIV-X 2.0].)
3	Oil pan (See OIL PAN REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
4	Oil filter (See OIL FILTER REPLACEMENT [SKYACTIV-X 2.0].)
5	Oil cooler (With oil cooler) (See OIL COOLER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
6	Engine oil solenoid valve (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
7	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
8	Oil pump component (See OIL PUMP REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
