INTAKE MANIFOLD REMOVAL/INSTALLATION [SKYACTIV-X 2.0]

id0113hf802000

Replacement parts

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-X 2.0].)

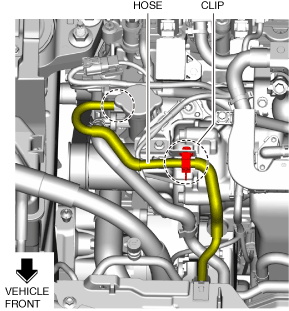

3.  Disconnect the hose and clip shown in the figure.

am3zzw00037190

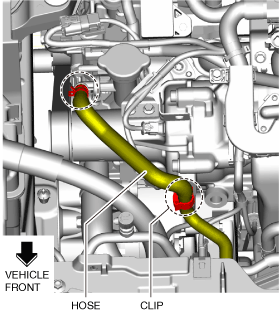

4.  Disconnect the hose and clip shown in the figure.

am3zzw00037191

5.  Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

6.  Remove the water-cooled charge air cooler reserve tank. (See WATER-COOLED CHARGE AIR COOLER RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

7.  Remove the cooling fan motor. (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

8.  Remove the bolts shown in the figure.

am3zzw00037192

9.  Disconnect the clips shown in the figure.

am3zzw00037193

10.  Disconnect the starter terminal S connector. (See STARTER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

11.  Disconnect the integrated starter generator (ISG) terminal B cable. (See INTEGRATED STARTER GENERATOR (ISG) REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

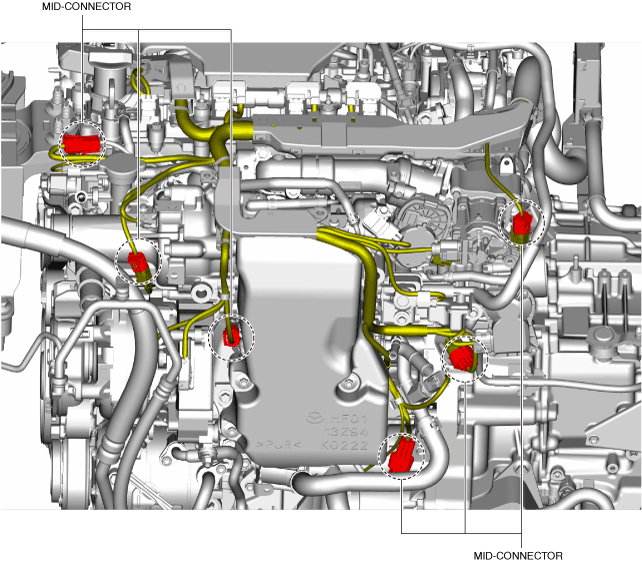

12.  Disconnect the mid-connectors shown in the figure.

am3zzw00037194

13.  Disconnect the connectors of the following parts:

•  Throttle body (See THROTTLE BODY REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

•  Engine coolant temperature (ECT) sensor No.3 (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

•  Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

•  EGR valve (See EGR VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

•  Air bypass valve (See AIR BYPASS VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

•  MAP sensor/IAT sensor No.2 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR No.2 REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

•  Swirl control valve (SCV) actuator (See INTAKE MANIFOLD REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

•  Ignition coil (See IGNITION COIL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

•  Integrated starter generator (ISG) (See INTEGRATED STARTER GENERATOR (ISG) REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

•  A/C pressure sensors No.1 and No.2 (See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

•  A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

•  Electric AT oil pump (ATX) (See ELECTRIC AT OIL PUMP REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)(See ELECTRIC AT OIL PUMP REMOVAL/INSTALLATION [ET6A-EL].)

•  TCM (ATX) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-X 2.0)].)(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-X 2.0)].)(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6AX-EL (SKYACTIV-X 2.0)].)

•  Neutral sensor No.1 (MTX) (See NEUTRAL SENSOR REMOVAL/INSTALLATION [C66M-R, C66MX-R].)

•  Back-up light switch (MTX) (See BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION [C66M-R, C66MX-R].)

•  Neutral sensor No.2 (MTX) (See NEUTRAL SENSOR REMOVAL/INSTALLATION [C66M-R, C66MX-R].)

•  Revolution sensor (MTX) (See REVOLUTION SENSOR REMOVAL/INSTALLATION [C66M-R, C66MX-R].)

14.  Disconnect the supercharger clutch connector.

am3zzw00037195

15.  Disconnect the clip and remove the bolts shown in the figure. (ATX)

am3zzw00037196

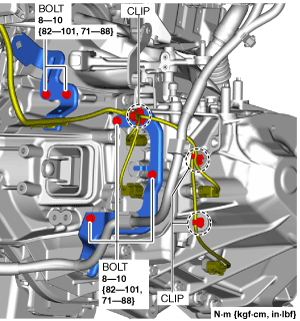

16.  Disconnect the clips and remove the bolts shown in the figure. (MTX)

am3zzw00037197

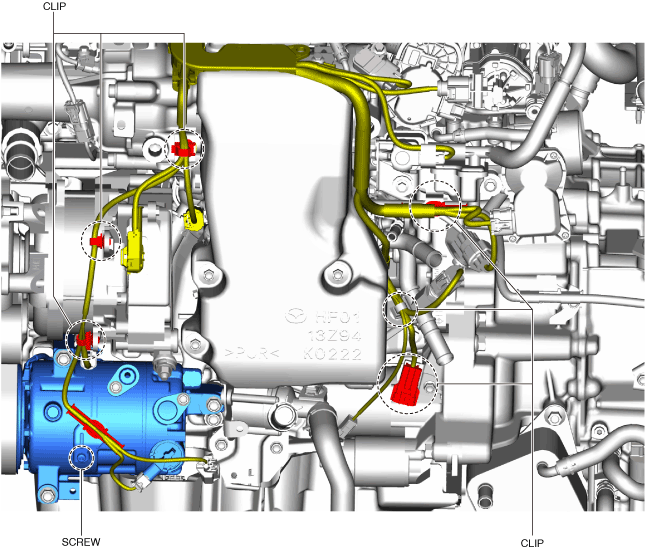

17.  Disconnect the clips and remove the screw shown in the figure.

am3zzw00037198

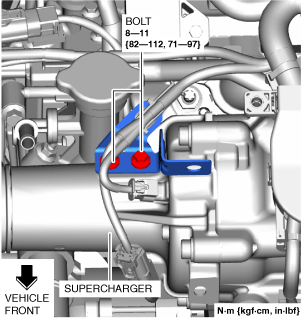

18.  Remove the bolts shown in the figure.

am3zzw00037199

19.  Set the wiring harness aside as shown in the figure.

am3zzw00037200

20.  Remove the bolt shown in the figure.

am3zzw00037201

21.  Disconnect the hoses shown in the figure.

am3zzw00037202

22.  Remove the purge solenoid valve component. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

23.  Disconnect the water hoses shown in the figure.

am3zzw00037203

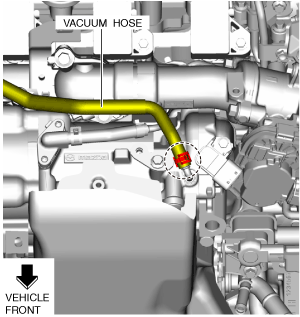

24.  Disconnect the vacuum hose shown in the figure.

am3zzw00037204

25.  Remove the insulator shown in the figure.

am3zzw00037205

26.  Remove air pipe No.1. (See AIR PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

27.  Remove the water pump drive belt from the supercharger and set it aside. (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

28.  Set aside the EGR cooler with the water hose connected. (See EGR COOLER REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

29.  Remove the supercharger. (See SUPERCHARGER REMOVAL/INSTALLATION [SKYACTIV-X 2.0])

30.  Remove air pipe No.2. (See AIR PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

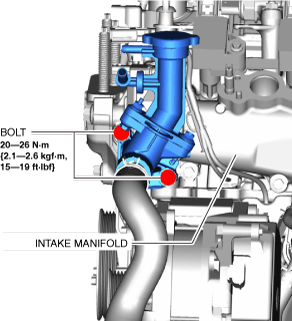

31.  Remove the water outlet pipe.

am3zzw00035807

32.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

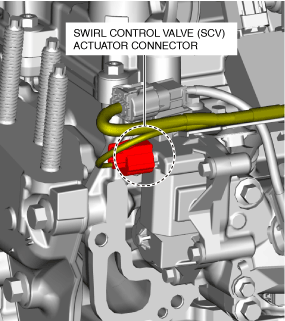

33.  Detach the swirl control valve (SCV) actuator connector shown in the figure.

am3zzw00035929

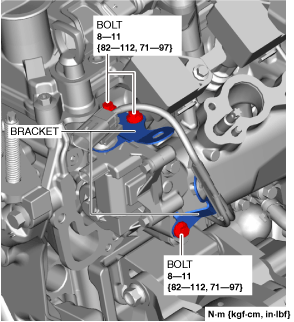

34.  Remove the bracket shown in the figure.

am3zzw00037206

35.  Disconnect the water hose shown in the figure.

am3zzw00035810

36.  Remove using the procedure shown in the figure.

37.  Install in the reverse order of removal.

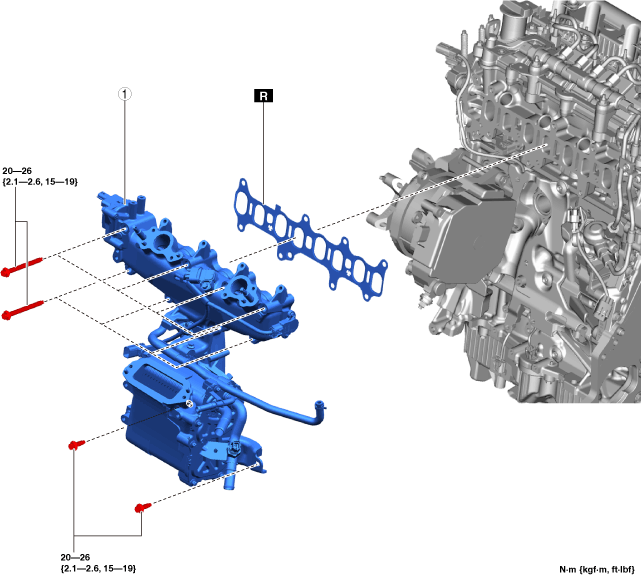

Step 1

am3zzw00037207

1	Intake manifold component (See Intake Manifold Component Installation Note.)

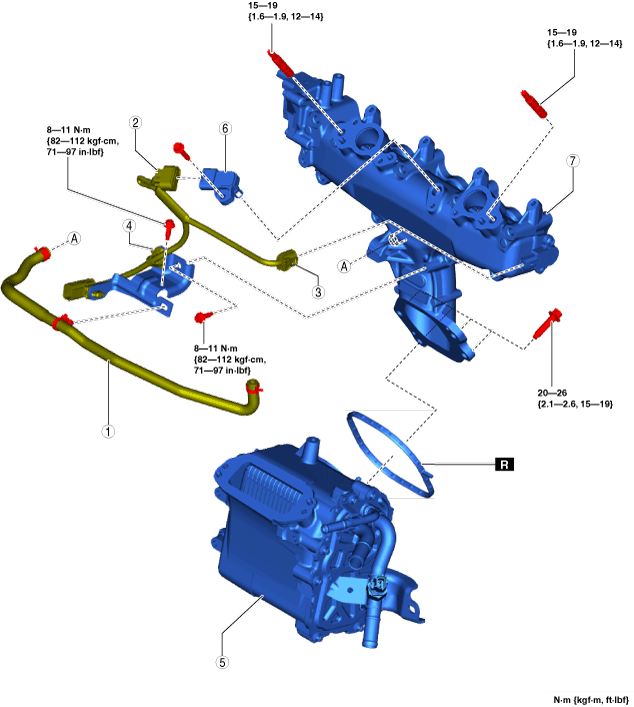

Step 2

am3zzw00037208

1	Water hose (See Water Hose Installation Note.)
2	Boost Air Pressure Sensor/boost Air Temperature Sensor connector (See BOOST AIR PRESSURE SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
3	swirl control valve (SCV) position sensor connector
4	Wiring harness bracket
5	Water-cooled charge air cooler component
6	Boost Air Pressure Sensor/boost Air Temperature Sensor (See BOOST AIR PRESSURE SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
7	Intake manifold

Intake Manifold Component Installation Note

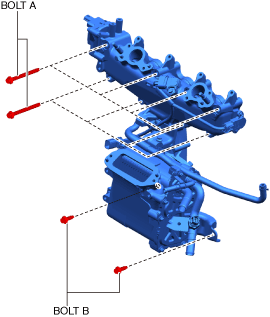

1.  Temporarily tighten any 2 of bolts A until they are seated.

am3zzw00037209

2.  Tighten bolts A.

3.  Temporarily tighten bolts B.

4.  Loosen bolts C.

am3zzw00037210

5.  Temporarily tighten bolts C.

6.  Tighten bolts B and C.

Water Hose Installation Note

1.  Install the water hose as shown in the figure.

am3zzw00035814
