FUEL SYSTEM [SKYACTIV-D 1.8]

id0114q9002600


Fuel System


Outline

A common rail-type fuel injection system has been adopted.

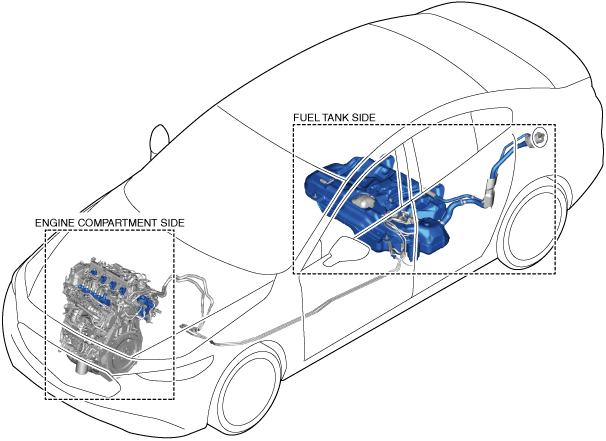

Structural view

am3zzn00008324

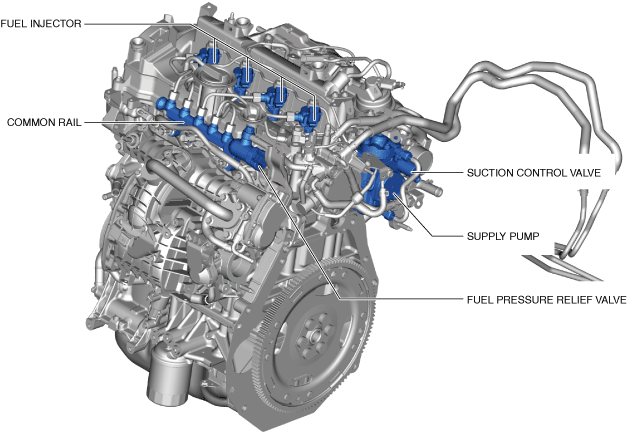

Engine compartment side

am3zzn00008325

Fuel tank side

am3zzn00008326


System diagram

atsuzn00000193


Structure

•  The fuel system consists of the following parts:

Part/System name

Reference
Common rail injection system
(See Common Rail Injection System.)
Fuel tank
(See FUEL TANK [SKYACTIV-D 1.8].)
Fuel filter
(See FUEL FILTER [SKYACTIV-D 1.8].)
Fuel warmer
Sedimentor switch
Supply pump
(See SUPPLY PUMP [SKYACTIV-D 1.8].)
Suction control valve
(See SUCTION CONTROL VALVE [SKYACTIV-D 1.8].)
Common rail
(See COMMON RAIL [SKYACTIV-D 1.8].)
Fuel injector
(See FUEL INJECTOR [SKYACTIV-D 1.8].)
Fuel pressure relief valve
(See FUEL PRESSURE RELIEF VALVE [SKYACTIV-D 1.8].)
Non-return valve
(See FUEL TANK [SKYACTIV-D 1.8].)
Quick release connector
―


Specification

Item

Specification
Supply pump
Electric control
Fuel injector
Electric control
Fuel tank capacity
(L {US gal, Imp gal})
51.0 {13.5, 11.2}
Fuel type
EN590 or the equivalent


Common Rail Injection System


Purpose, outline

•  The common rail fuel injection system stores fuel pressurized by the supply pump in the common rail and injects the fuel into each cylinder using the fuel injectors based on the control by the PCM.
―  Fuel is atomized by the extremely high fuel injection pressure, and the generation of particulate matter is reduced by the dissipation of unburnt fuel.
―  There is a high degree of flexibility in the fuel injection amount, fuel injection timing and fuel injection pattern, and NOx/PM is reduced by controlling the fuel conditions according to the conditions.

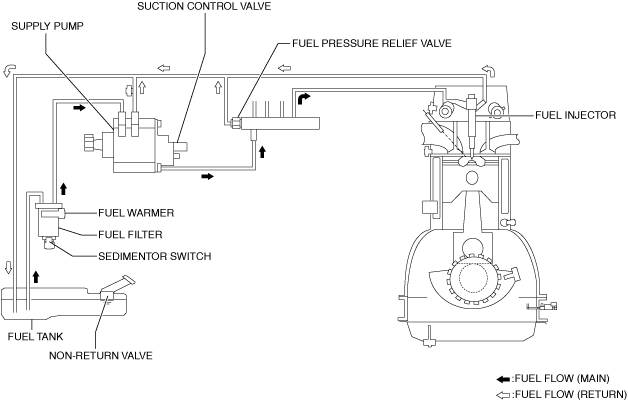

System diagram

am3zzn00008400


Structure

•  The common rail fuel injection system consists of the following parts.

Part name

Reference
Fuel tank
(See FUEL TANK [SKYACTIV-D 1.8].)
Fuel filter
(See FUEL FILTER [SKYACTIV-D 1.8].)
Fuel warmer
Sedimentor switch
Supply pump
(See SUPPLY PUMP [SKYACTIV-D 1.8].)
Suction control valve
(See SUCTION CONTROL VALVE [SKYACTIV-D 1.8].)
Common rail
(See COMMON RAIL [SKYACTIV-D 1.8].)
Fuel injector
(See FUEL INJECTOR [SKYACTIV-D 1.8].)
Fuel pressure relief valve
(See FUEL PRESSURE RELIEF VALVE [SKYACTIV-D 1.8].)
