FUEL SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

id0114u3002600


Outline

•  A multiple hole type fuel injector has been adopted which provides higher fuel injection accuracy for improved fuel efficiency and output.
•  Piston movement-compression by the 4-head cam inside the high pressure fuel pump heightens the fuel pressure, achieving improved fuel efficiency and output.
•  A brushless motor has been adopted in the fuel pump unit for improved fuel economy. Using the brushless motor, the fuel pump function is improved and a stabilized fuel supply is achieved.

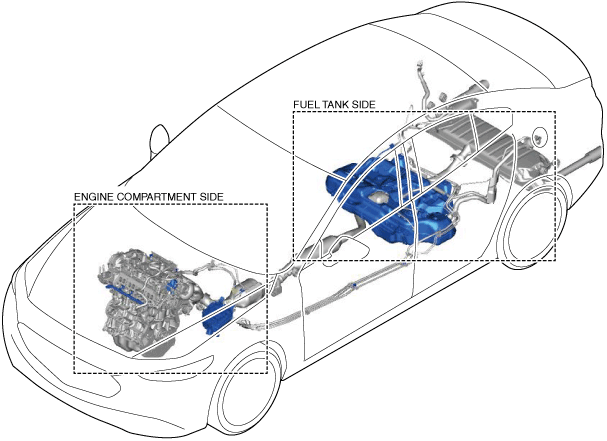

Structural View

atsuzn00000642

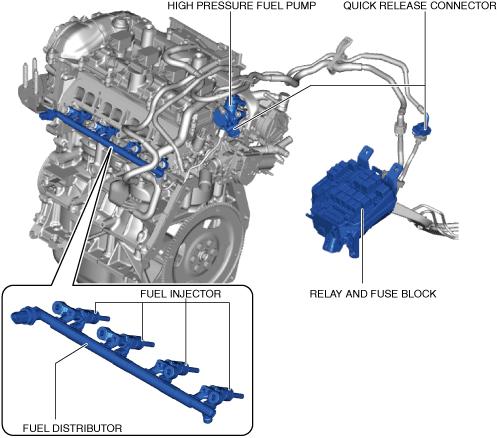

Engine compartment side

am3zzn00006741

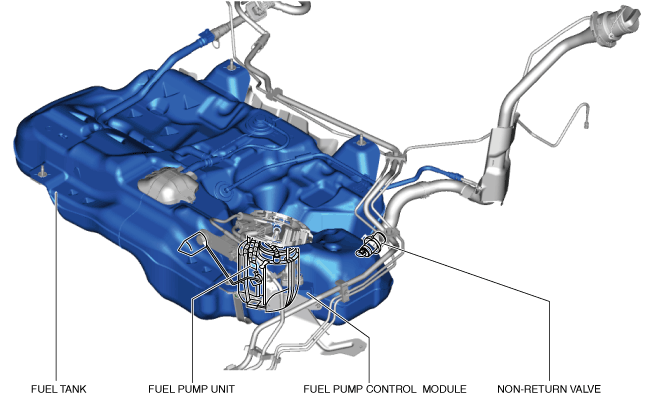

Fuel tank side

atsuzn00000643

System Diagram

am6xun00004085

Structure

•  The fuel system consists of the following parts:

Part/System name

Reference
Return-less fuel system
Fuel pump unit
(See RETURNLESS FUEL SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Direct fuel injection system
(See DIRECT FUEL INJECTION SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
High pressure fuel pump
(See HIGH PRESSURE FUEL PUMP [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Fuel distributor
(See FUEL DISTRIBUTOR [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Fuel injector
(See FUEL INJECTOR [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Fuel tank
(See FUEL TANK [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Non-return valve
(See FUEL TANK [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Fuel pump relay
―
Sub relay
―
Fuel pump control module
(See FUEL PUMP CONTROL MODULE [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Quick connector (fuel system)
―


Specification

Item

Specification
Fuel injector
Type
High resistance
Fuel supply method
Top-feed
Drive types
Electronic
Pressure regulator control pressure
(kPa {kgf/cm2, psi})
Approx. 500 {5.10, 72.5}
Fuel pump type
Electric
Fuel tank capacity
(L {US gal, Imp gal})
51.0 {13.5, 11.2}

Fuel type

Fuel

Research Octane Number

Country
Premium unleaded fuel (Conforming to EN 228 and within E10)
95 or above
Albania, Andorra, Austria, Belgium, Bosnia and Herzegovina, Bulgaria, Canary Islands, Croatia, Cyprus, Czech, Denmark, Estonia, Faeroe, F.Guiana, Finland, France, Germany, Greece, Guadeloupe, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Martinique, Moldova, Monaco, Montenegro, Morocco, The Netherlands, New Caledonia, Norway, Poland, Portugal, Reunion, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, UK, Ukraine, Vatican, Guatemala, Bolivia, Honduras, Nicaragua, Aruba, St. Martin
Regular unleaded fuel (Conforming to Fuel Quality Standards Act 2000)
90 or above
Australia, New zealand, Ghana, Chile, El salvador, Costa Rica, Haiti, Dominican Republic (LHD), Panama, Peru, B.Virgin, Curacao
