EXHAUST SYSTEM LOCATION INDEX [SKYACTIV-X 2.0]

id0115hf801200

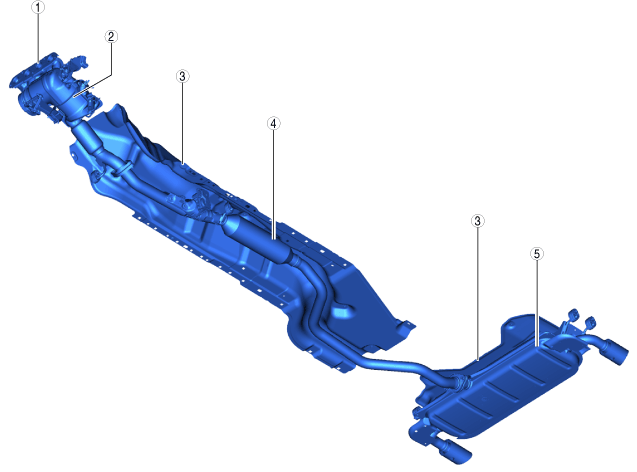

2WD

am3zzw00035239

1	Exhaust manifold (See EXHAUST MANIFOLD REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See EXHAUST SYSTEM INSPECTION [SKYACTIV-X 2.0].)
2	Catalytic converter (GPF) (See CATALYTIC CONVERTER (GPF) REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See EXHAUST SYSTEM INSPECTION [SKYACTIV-X 2.0].)
3	Exhaust system insulator (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0]) (See EXHAUST SYSTEM INSPECTION [SKYACTIV-X 2.0].)
4	Middle pipe (See MIDDLE PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0]) (See EXHAUST SYSTEM INSPECTION [SKYACTIV-X 2.0].)
5	Main silencer (See MAIN SILENCER REMOVAL/INSTALLATION [SKYACTIV-X 2.0]) (See EXHAUST SYSTEM INSPECTION [SKYACTIV-X 2.0].) (See TAILPIPE REPLACEMENT [SKYACTIV-X 2.0].)

AWD

am3zzw00035240

1	Exhaust manifold (See EXHAUST MANIFOLD REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See EXHAUST SYSTEM INSPECTION [SKYACTIV-X 2.0].)
2	Catalytic converter (GPF) (See CATALYTIC CONVERTER (GPF) REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See EXHAUST SYSTEM INSPECTION [SKYACTIV-X 2.0].)
3	Exhaust system insulator (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0]) (See EXHAUST SYSTEM INSPECTION [SKYACTIV-X 2.0].)
4	Middle pipe (See MIDDLE PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0]) (See EXHAUST SYSTEM INSPECTION [SKYACTIV-X 2.0].)
5	Main silencer (See MAIN SILENCER REMOVAL/INSTALLATION [SKYACTIV-X 2.0]) (See EXHAUST SYSTEM INSPECTION [SKYACTIV-X 2.0].) (See TAILPIPE REPLACEMENT [SKYACTIV-X 2.0].)
