OIL PRESSURE SWITCH REPLACEMENT [CW6A-EL]

id0517l1112700

Replacement Part

Oil Pressure Switch A Quantity: 1 Location of use: Control valve body	tie wrap Quantity: 2 Location of use: Oil Pressure Switch A	Oil strainer Quantity: 1 Location of use: Oil Pressure Switch A
O-ring Quantity: 1 Location of use: Oil Strainer	Oil Pressure Switch B Quantity: 1 Location of use: Control valve body	tie wrap Quantity: 1 Location of use: Oil Pressure Switch B
Bolt Quantity: 16 Location of use: Oil pan	—	—

Oil and Chemical Type

Sealant

Type: TB1217E or equivalent

Warning

• A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool.

• Always wear protective eye wear when using the air compressor. If the air compressor is used, any particles of dirt or sludge could spatter and get into the eyes.

Caution

• Always perform the initial learning after replacing the oil pressure switch. (See INITIAL LEARNING [CW6A-EL].)

• Do not apply excessive force to the coupler component wiring harness.

• Be careful that the edge of the oil pressure switch and the ATF temperature sensor bracket does not damage the insulation of the coupler component wiring harness or the surrounding parts. If the insulation of the wiring harness is damaged, replace the coupler component. (See COUPLER COMPONENT REMOVAL/INSTALLATION [CW6A-EL].)

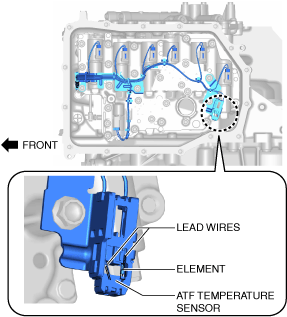

• Touching the ATF temperature sensor element or the lead wires by hand may cause a malfunction. When handling the coupler component, do not touch the ATF temperature sensor element or the lead wires.

am2zzw00009299

Oil Pressure Switch A

1. Select the selector lever to P position.

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3. Remove the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

4. Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

5. Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.

6. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [CW6A-EL].)

7. Remove the oil pan.

am3zzw00032066

8. Remove the oil strainer.

am2zzw00014406

9. Remove the oil strainer O-ring.

am3zzw00024690

10. Remove the bolts shown in the figure.

am3zzw00024691

11. Move oil pressure switch A and the ATF temperature sensor bracket in the direction of the arrow to assure a clearance to insert the tool.

am3zzw00030897

Caution

• Support oil pressure switch A using a hand so as not to apply excessive force to the coupler component wiring harness.

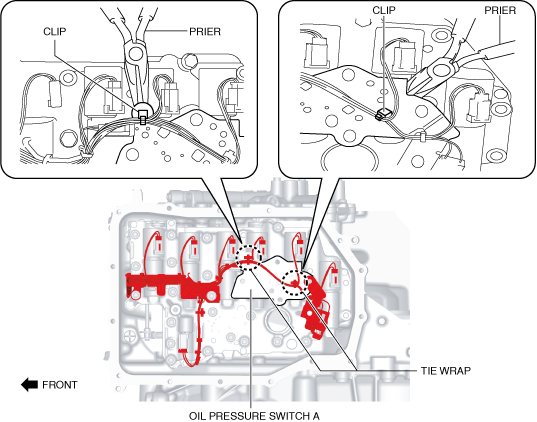

12. Using pliers, detach the tie wrap clips secured to oil pressure switch A.

am3zzw00024693

Caution

• The pins for securing the solenoid valves are located in the area circled with a dotted line, and they may drop down and be lost during coupler component removal. When removing the coupler component, be careful not to drop the pins for securing the solenoid valves, and if they do drop, be careful that they do not got lost.

am2zzw00009303

• Never change the shift solenoid assembly position. If the assembly position is changed, it may cause a malfunction.

• Be careful not to allow foreign matter to get on the pressure receiving surfaces of oil pressure switch A.

am3zzw00024694

13. Insert a precision flathead screwdriver and move it in the direction of the arrow to disconnect the oil pressure switch A connector as shown in the figure.

am3zzw00024695

Caution

• Set the coupler component wiring harness aside using the precision flathead screwdriver so as not to damage the wiring harness, then disconnect the oil pressure switch A connector.

• Do not scratch the oil pressure switch A connector with the precision flathead screwdriver.

• When disconnecting connectors, grasp the connectors, not the wiring harnesses. Otherwise, the wiring harnesses may be pulled out of the connector causing poor contact.

14. Remove the oil pressure switch A.

am2zzw00009306

15. Install new oil pressure switch A using the bolts shown in the figure.

am3zzw00032067

Caution

• Do not damage the gaskets and pressure receiving surfaces of oil pressure switch A.

am3zzw00024697

• When tightening the bolts, be careful not to pinch the coupler component wiring harness. If the wiring harness is pinched, replace the coupler component. (See COUPLER COMPONENT REMOVAL/INSTALLATION [CW6A-EL].)

Note

• Use the bolt indicated by a dotted line to tighten the ATF temperature sensor bracket together with oil pressure switch A.

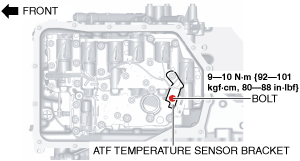

16. Install the ATF temperature sensor bracket using the bolts shown in the figure.

am3zzw00032068

17. Connect the oil pressure switch A connector.

am3zzw00024699

Caution

• Insert the connector until a click is heard.

18. Using the following procedure, replace the tie wraps (2 locations) secured to oil pressure switch A.

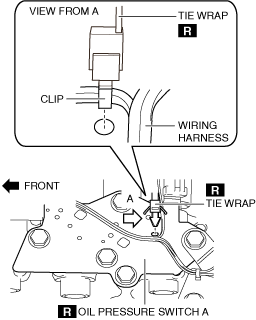

(1) Assemble a new tie wrap to oil pressure switch A.

am3zzw00024700

Caution

• Assemble the tie wrap in the direction shown in the figure.

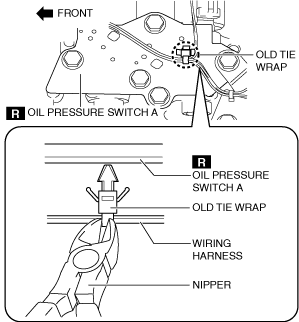

(2) Using nippers, cut and remove the old tie wrap.

am3zzw00024701

Caution

• Collect and dispose of the cut tie wrap and its fragments securely.

• Be careful not to damage the insulation of the coupler component wiring harness. If the insulation of the wiring harness is damaged, replace the coupler component. (See COUPLER COMPONENT REMOVAL/INSTALLATION [CW6A-EL].)

(3) Route the wiring harness shown in the figure so that it is positioned on the vehicle front side from dotted line A (oil pressure switch A end).

am3zzw00024702

Caution

• Route the wiring harness so that it does not contact the surrounding parts.

• Route the wiring harness so that it is not bent or twisted.

• Be careful not to pull the wiring harness excessively.

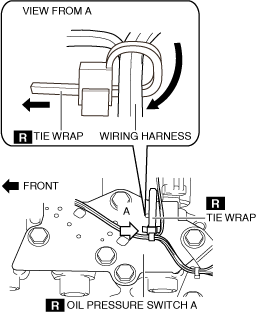

(4) Bundle the coupler component wiring harness using a tie wrap and secure it.

am3zzw00024703

Caution

• Make sure to bundle all wiring harnesses.

(5) Pull the end of the tie wrap to bundle tightly.

am3zzw00024704

(6) Hold the tie wrap and the coupler component wiring harness in each hand, then move the tie wrap left and right and verify that the tie wrap and the wiring harness do not slide.

Caution

• Be careful not to move the tie wrap with excessive force.

(7) Cut the tie wrap at the position shown in the figure.

am3zzw00024705

Caution

• Collect and dispose of the cut tie wrap and its fragments securely.

(8) Pull the tie wrap lightly and verify that the tie wrap is securely assembled to oil pressure switch A.

(9) Assemble a new tie wrap to oil pressure switch A.

am3zzw00024706

Caution

• Assemble the tie wrap in the direction shown in the figure.

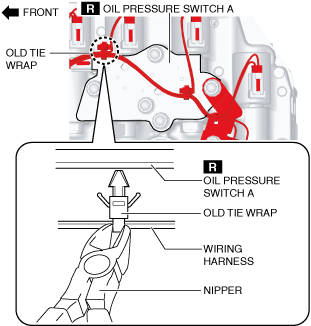

(10) Using nippers, cut and remove the old tie wrap.

am3zzw00024707

Caution

• Collect and dispose of the cut tie wrap and its fragments securely.

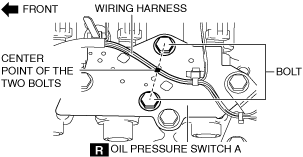

(11) Route the wiring harness shown in the figure so that it runs on the center point of the two bolts.

am3zzw00024708

Caution

• Route the wiring harness so that it does not contact the surrounding parts.

• Route the wiring harness so that it is not bent or twisted.

• Be careful not to pull the wiring harness excessively.

(12) Bundle the coupler component wiring harness using a tie wrap and secure it.

am3zzw00024709

Caution

• Make sure to bundle all wiring harnesses.

(13) Pull the end of the tie wrap to bundle tightly.

am3zzw00024710

(14) Hold the tie wrap and the coupler component wiring harness in each hand, then move the tie wrap left and right and verify that the tie wrap and the wiring harness do not slide.

Caution

• Be careful not to move the tie wrap with excessive force.

(15) Cut the tie wrap at the position shown in the figure.

am3zzw00024711

Caution

• Collect and dispose of the cut tie wrap and its fragments securely.

(16) Pull the tie wrap lightly and verify that the tie wrap is securely assembled to oil pressure switch A.

(17) Measure the distances between the coupler component wiring harness and the bolt flange and verify that the distances are assured as shown in the figure.

am3zzw00024712

19. Install the new oil strainer O-ring.

am3zzw00024713

20. Install the new oil strainer.

am3zzw00032069

21. Apply a light coat of silicone sealant (TB1217E or equivalent) to the contact surfaces of the oil pan and transaxle case.

am3zzw00024714

Caution

• Clean any remaining silicone sealant on the contact surface of the transaxle case and oil pan, and degrease the sealant area. Otherwise, oil could leak.

22. Install the oil pan with new bolts before the applied sealant starts to harden.

am3zzw00032070

23. Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [CW6A-EL].)

24. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

25. Perform the “Initial Learning”. (See INITIAL LEARNING [CW6A-EL].)

26. Perform the “Mechanical System Test”. (See MECHANICAL SYSTEM TEST [CW6A-EL].)

27. Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

28. Install the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

Oil Pressure Switch B

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Remove the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

3. Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

4. Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.

5. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [CW6A-EL].)

6. Remove the oil pan.

am3zzw00027301

7. Remove the oil strainer.

am2zzw00014406

8. Remove the oil strainer O-ring.

am3zzw00024690

9. Release the ON/OFF solenoid connector tab using a finger and disconnect the ON/OFF solenoid connector.

am2zzw00009324

10. Remove the bolts shown in the figure.

am3zzw00024715

11. Move oil pressure switch B in the direction of the arrow to assure a clearance to insert the tool.

am3zzw00024716

Caution

• Support oil pressure switch B using a hand so as not to apply excessive force to the coupler component wiring harness.

12. Using pliers, detach the tie wrap clips secured to oil pressure switch B.

am3zzw00024717

Caution

• Be careful not to allow foreign matter to get on the pressure receiving surfaces of oil pressure switch B.

am3zzw00024718

13. Rotate oil pressure switch B and the coupler component 90 degrees in the direction shown in the figure.

am3zzw00024719

Note

• When disconnecting the oil pressure switch B connector, do not apply excessive force to the wiring harness.

14. Insert a precision flathead screwdriver and move it in the direction of the arrow to disconnect the oil pressure switch B connector as shown in the figure.

am3zzw00024720

Caution

• Set the coupler component wiring harness aside using the precision flathead screwdriver so as not to damage the wiring harness, then disconnect the oil pressure switch B connector.

• Do not scratch the oil pressure switch B connector with the precision flathead screwdriver.

• When disconnecting connectors, grasp the connectors, not the wiring harnesses. Otherwise, the wiring harnesses may be pulled out of the connector causing poor contact.

15. Remove the oil pressure switch B.

am2zzw00009331

16. Install new oil pressure switch B using the bolts shown in the figure.

am3zzw00032071

Caution

• Do not damage the gaskets and pressure receiving surfaces of oil pressure switch B.

am3zzw00024721

17. Connect the oil pressure switch B connector.

am2zzw00009333

Caution

• Insert the connector until a click is heard.

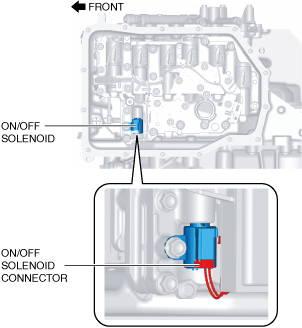

18. Connect the ON/OFF solenoid connector.

am2zzw00009334

Caution

• Insert the connector until a click is heard.

19. Using the following procedure, replace the tie wrap secured to oil pressure switch B.

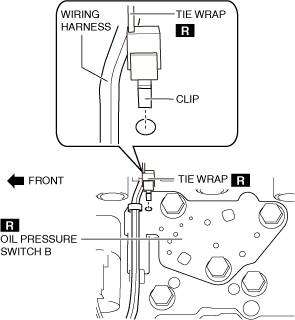

(1) Assemble a new tie wrap to oil pressure switch B.

am3zzw00024722

Caution

• Assemble the tie wrap in the direction shown in the figure.

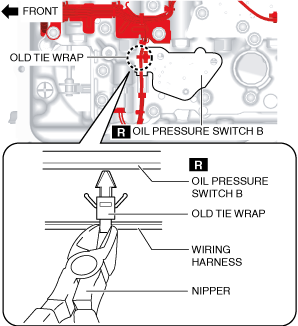

(2) Using nippers, cut and remove the old tie wrap.

am3zzw00024723

Caution

• Collect and dispose of the cut tie wrap and its fragments securely.

(3) Route the wiring harness shown in the figure so that it runs straight on the oil pressure switch B connector.

am3zzw00024724

Caution

• Route the wiring harness so that it does not contact the surrounding parts.

• Route the wiring harness so that it is not bent or twisted.

• Be careful not to pull the wiring harness excessively.

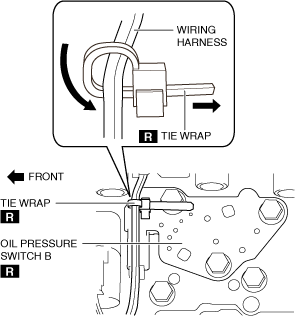

(4) Bundle the coupler component wiring harness using a tie wrap and secure it.

am3zzw00024725

Caution

• Make sure to bundle all wiring harnesses.

(5) Pull the end of the tie wrap to bundle tightly.

am3zzw00024726

(6) Hold the tie wrap and the coupler component wiring harness in each hand, then move the tie wrap left and right and verify that the tie wrap and the wiring harness do not slide.

Caution

• Be careful not to move the tie wrap with excessive force.

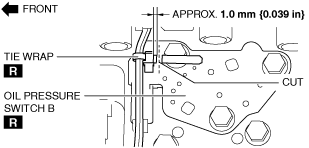

(7) Cut the tie wrap at the position shown in the figure.

am3zzw00024727

Caution

• Collect and dispose of the cut tie wrap and its fragments securely.

(8) Pull the tie wrap lightly and verify that the tie wrap is securely assembled to oil pressure switch B.

20. Install the new oil strainer O-ring.

am3zzw00024713

21. Install the new oil strainer.

am3zzw00032069

22. Apply a light coat of silicone sealant (TB1217E or equivalent) to the contact surfaces of the oil pan and transaxle case.

am3zzw00024714

Caution

• Clean any remaining silicone sealant on the contact surface of the transaxle case and oil pan, and degrease the sealant area. Otherwise, oil could leak.

23. Install the oil pan with new bolts before the applied sealant starts to harden.

am3zzw00032070

24. Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [CW6A-EL].)

25. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

26. Perform the “Initial Learning”. (See INITIAL LEARNING [CW6A-EL].)

27. Perform the “Mechanical System Test”. (See MECHANICAL SYSTEM TEST [CW6A-EL].)

28. Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

29. Install the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)
