CONTROL VALVE BODY REMOVAL/INSTALLATION [CW6A-EL]


id0517l1118000

Replacement Part

Gasket

Quantity: 4

Location of use: Transaxle case
O-ring

Quantity: 1

Location of use: Oil strainer
Oil strainer

Quantity: 1

Location of use: Control valve body
Bolt

Quantity: 16

Location of use: Oil pan
Hose clamp

Quantity: 1

Location of use: Control valve body

Oil and Chemical Type

Sealant

Type: TB1217E or equivalent


On-Vehicle Removal

Warning
•  A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool.
•  Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eyeglasses whenever using compressed air.
Caution
•  If the control valve body has been replaced, perform TCM configuration. (See TCM CONFIGURATION [CW6A-EL].)
•  If the control valve body has been replaced, perform initial learning. (See INITIAL LEARNING [CW6A-EL].)

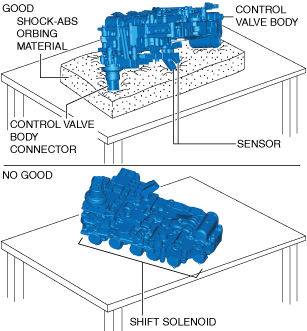

•  If the control valve body is placed with the shift solenoid side facing down on a workbench, the wiring harness or connector of the coupler component may be damaged. When placing the control valve body on a workbench, always place it with the control valve body connector side facing down. However if the control valve body is directly placed on the workbench, the control valve body connector area or the sensor may be damaged. Always place the control valve body on an impact-absorbing material, which is free of foreign matter, so that the connector area and the sensor do not contact the workbench directly.
am3zzw00035168

1.  When replacing the control valve body, perform TCM configuration. (See TCM CONFIGURATION [CW6A-EL].)

2.  Select the selector lever to P position.

3.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

4.  Remove the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

5.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

6.  Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.

7.  Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

•  Air cleaner cover
•  Air cleaner element
•  Fresh-air duct
•  Air cleaner case
•  Air hose
•  Resonance chamber

8.  Disconnect the control valve body connector.

am3zzw00030671

Caution
•  Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
•  Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

9.  Remove the hose clamp.

am3zzw00032112

10.  Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [CW6A-EL].)

11.  Remove the oil pan.

am3zzw00032113

12.  Remove the oil strainer.

am2zzw00014409

13.  Remove the oil strainer O-ring.

am2zzw00007717

14.  Remove the control valve body.

am2zzw00007718

Caution
•  Remove the control valve body directly from underneath so that force is not applied to the control valve body connector in the lateral direction.

15.  Remove the oil seal (control valve body). (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT [CW6A-EL].)

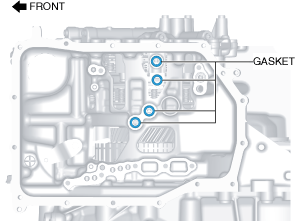

16.  Remove the gasket from the transaxle case.

am2zzw00007719


On-Vehicle Installation

1.  Install the gasket to the transaxle case.

am3zzw00024744

2.  Install the dowel pin to the control valve body.

am3zzw00024745

Note
•  Oil with a color different from the genuine ATF may be adhered to a new control valve body.
•  If the dowel pin remains in the transaxle case, remove the dowel pin from the transaxle case and install the dowel pin to the control valve body.

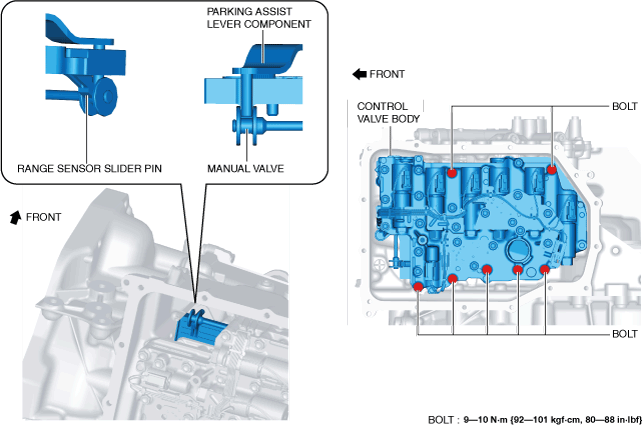

3.  Install the control valve body so that the parking assist lever component and range sensor slider pin are engaged in the gap between the two surfaces of the spool part of the manual valve.

Caution
•  Install the control valve body so that the turbine/input shaft speed sensor, output shaft speed sensor, and control valve body connector do not contact the transaxle case.
am3zzw00024746
am3zzw00036328

4.  Move the manual valve in both directions of the arrow and verify that the manual valve is correctly connected to the parking assist lever component and the slider pin for the range sensor.

am2zzw00007724

Note
•  If the manual valve only moves in the gap between the parking assist lever component surface and the manual valve surface, the manual valve and the parking assist lever component are correctly engaged.

5.  Install the new oil strainer O-ring.

am2zzw00014410

6.  Install the new oil strainer.

am3zzw00032115

7.  Apply a light coat of silicone sealant (TB1217E or equivalent) to the contact surfaces of the oil pan and transaxle case.

am3zzw00024747

Caution
•  Clean any remaining silicone sealant on the contact surface of the transaxle case and oil pan, and degrease the sealant area. Otherwise, oil could leak.

8.  Install the oil pan with new bolts before the applied sealant starts to harden.

am3zzw00032116

9.  Install the oil seal (control valve body). (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT [CW6A-EL].)

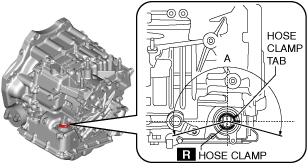

10.  Install a new hose clamp to the position shown in the figure.

Caution
•  If the hose clamp is reused it could cause ATF leakage, therefore use a new hose clamp.
•  Install the hose clamp tab to within the range shown in the figure.
am3zzw00032117
A: 210°
•  Install the hose clamp so that it does not interfere with the top and bottom flanges of the oil seal to maintain the waterproofing integrity.
am2zzw00014412

11.  Connect the control valve body connector.

am3zzw00030671

Caution
•  Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
•  Verify that there is no fluid or foreign matter adhering to the connector before connecting the connector.
•  Insert the connector straight as the connector terminal could be damaged.
•  Rotate the connector lever until a click is heard.

12.  Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [CW6A-EL].)

13.  Install the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

•  Air cleaner cover
•  Air cleaner element
•  Fresh-air duct
•  Air cleaner case
•  Air hose
•  Resonance chamber

14.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

15.  If the control valve body is replaced, perform the following procedure

(1)  Perform the TCM configuration. (See TCM CONFIGURATION [CW6A-EL].)
(2)  Perform the “initial learning”. (See INITIAL LEARNING [CW6A-EL].)

16.  Perform the “Mechanical System Test”. (See MECHANICAL SYSTEM TEST [CW6A-EL].)

17.  Perform the “Road Test”. (See ROAD TEST [CW6A-EL].)
