AUTOMATIC TRANSAXLE LOCATION INDEX [ET6A-EL, ET6AX-EL]

id0517n3118200

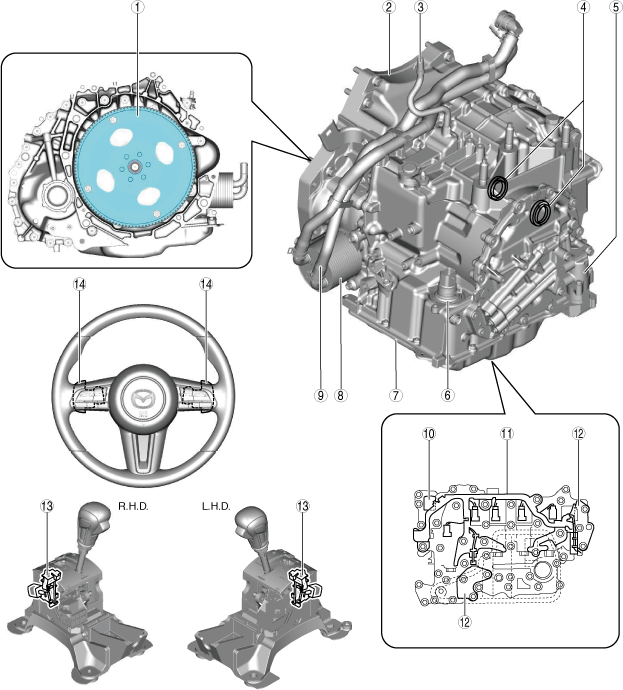

SKYACTIV-G 2.0, SKYACTIV-G 2.5

am3zzw00024749

1	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
2	Automatic transaxle (See MECHANICAL SYSTEM TEST [ET6A-EL, ET6AX-EL].) (See ROAD TEST [ET6A-EL, ET6AX-EL].) (See INITIAL LEARNING [ET6A-EL, ET6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [ET6A-EL, ET6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [ET6A-EL, ET6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [ET6A-EL, ET6AX-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].) (See TCM CONFIGURATION [ET6A-EL, ET6AX-EL].)
3	Breather hose (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
4	Oil seal (differential) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT [ET6A-EL, ET6AX-EL].)
5	Electric AT oil pump (with i-stop) (See ELECTRIC AT OIL PUMP REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
6	Oil seal (control valve body) (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT [ET6A-EL, ET6AX-EL].)
7	Control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].) (See TCM CONFIGURATION [ET6A-EL, ET6AX-EL].)
8	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
9	Water hose (See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
10	ON/OFF solenoid (See ON/OFF SOLENOID REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
11	Coupler component (See COUPLER COMPONENT REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
12	Oil pressure switch (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
13	M position switch/ up switch/ down switch (See M POSITION SWITCH INSPECTION [ET6A-EL, ET6AX-EL].) (See M POSITION SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].) (See UP SWITCH INSPECTION [ET6A-EL, ET6AX-EL].) (See UP SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].) (See DOWN SWITCH INSPECTION [ET6A-EL, ET6AX-EL].) (See DOWN SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
14	Steering shift switch (See STEERING SHIFT SWITCH INSPECTION [ET6A-EL, ET6AX-EL].) (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)

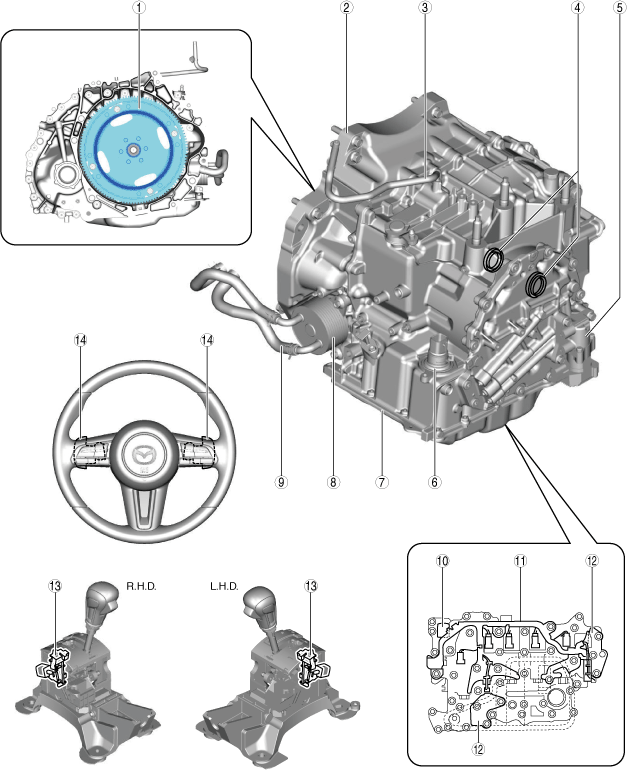

SKYACTIV-D 1.8

am3zzw00026383

1	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
2	Automatic transaxle (See MECHANICAL SYSTEM TEST [ET6A-EL, ET6AX-EL].) (See ROAD TEST [ET6A-EL, ET6AX-EL].) (See INITIAL LEARNING [ET6A-EL, ET6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [ET6A-EL, ET6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [ET6A-EL, ET6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [ET6A-EL, ET6AX-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-D 1.8)].) (See TCM CONFIGURATION [ET6A-EL, ET6AX-EL].)
3	Breather hose (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-D 1.8)].)
4	Oil seal (differential) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT [ET6A-EL, ET6AX-EL].)
5	Electric AT oil pump (See ELECTRIC AT OIL PUMP REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
6	Oil seal (control valve body) (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT [ET6A-EL, ET6AX-EL].)
7	Control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].) (See TCM CONFIGURATION [ET6A-EL, ET6AX-EL].)
8	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-D 1.8)].)
9	Water hose (See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-D 1.8)].)
10	ON/OFF solenoid (See ON/OFF SOLENOID REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
11	Coupler component (See COUPLER COMPONENT REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
12	Oil pressure switch (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
13	M position switch/ up switch/ down switch (See M POSITION SWITCH INSPECTION [ET6A-EL, ET6AX-EL].) (See M POSITION SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].) (See UP SWITCH INSPECTION [ET6A-EL, ET6AX-EL].) (See UP SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].) (See DOWN SWITCH INSPECTION [ET6A-EL, ET6AX-EL].) (See DOWN SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
14	Steering shift switch (See STEERING SHIFT SWITCH INSPECTION [ET6A-EL, ET6AX-EL].) (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)

SKYACTIV-X 2.0

am3zzw00031980

1	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
2	Automatic transaxle (See MECHANICAL SYSTEM TEST [ET6A-EL, ET6AX-EL].) (See ROAD TEST [ET6A-EL, ET6AX-EL].) (See INITIAL LEARNING [ET6A-EL, ET6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [ET6A-EL, ET6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [ET6A-EL, ET6AX-EL].) (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [ET6A-EL, ET6AX-EL].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-X 2.0)].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6AX-EL (SKYACTIV-X 2.0)].) (See TCM CONFIGURATION [ET6A-EL, ET6AX-EL].)
3	Breather hose (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6A-EL (SKYACTIV-X 2.0)].) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [ET6AX-EL (SKYACTIV-X 2.0)].)
4	Oil seal (differential) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT [ET6A-EL, ET6AX-EL].)
5	Electric AT oil pump (See ELECTRIC AT OIL PUMP REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
6	Oil seal (control valve body) (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT [ET6A-EL, ET6AX-EL].)
7	Control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].) (See TCM CONFIGURATION [ET6A-EL, ET6AX-EL].)
8	Oil hose (with oil hose) (See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (SKYACTIV-X 2.0)].)
9	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (SKYACTIV-X 2.0)].)
10	Water hose (See OIL COOLER REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL (SKYACTIV-X 2.0)].)
11	ON/OFF solenoid (See ON/OFF SOLENOID REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
12	Coupler component (See COUPLER COMPONENT REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
13	Oil pressure switch (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
14	M position switch/ up switch/ down switch (See M POSITION SWITCH INSPECTION [ET6A-EL, ET6AX-EL].) (See M POSITION SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].) (See UP SWITCH INSPECTION [ET6A-EL, ET6AX-EL].) (See UP SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].) (See DOWN SWITCH INSPECTION [ET6A-EL, ET6AX-EL].) (See DOWN SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
15	Steering shift switch (See STEERING SHIFT SWITCH INSPECTION [ET6A-EL, ET6AX-EL].) (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL].)
