HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER (E)]

id0740a18036y2

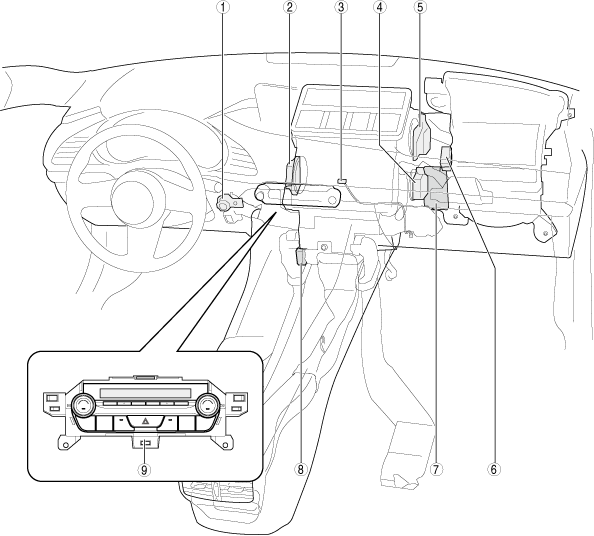

Structural View (Interior (L.H.D.))

am3zzw00028798

1	Passenger compartment temperature sensor (See PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See PASSENGER COMPARTMENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
2	Driver-side air mix actuator (See AIR MIX ACTUATOR REMOVAL [FULL-AUTO AIR CONDITIONER (E)].) (See AIR MIX ACTUATOR INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
3	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
4	Passenger-side air mix actuator (See AIR MIX ACTUATOR REMOVAL [FULL-AUTO AIR CONDITIONER (E)].) (See AIR MIX ACTUATOR INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
5	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL [FULL-AUTO AIR CONDITIONER (E)].) (See AIRFLOW MODE ACTUATOR INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
6	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
7	Dash-electrical supply unit (See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See DASH-ELECTRICAL SUPPLY UNIT INSPECTION [FULL-AUTO AIR CONDITIONER (E)].)
8	Rear vent actuator (With rear vent) (See REAR VENT ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See REAR VENT ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
9	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See DASH-ELECTRICAL SUPPLY UNIT INSPECTION [FULL-AUTO AIR CONDITIONER (E)].)

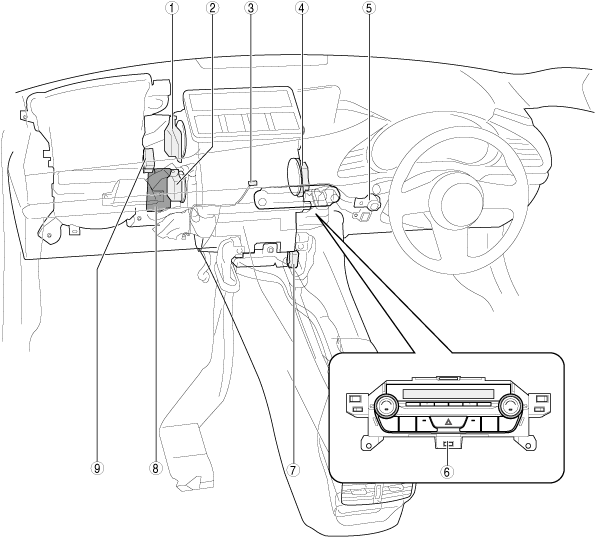

Structural View (Interior (R.H.D.))

am3zzw00028799

1	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL [FULL-AUTO AIR CONDITIONER (E)].) (See AIRFLOW MODE ACTUATOR INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
2	Passenger-side air mix actuator (See AIR MIX ACTUATOR REMOVAL [FULL-AUTO AIR CONDITIONER (E)].) (See AIR MIX ACTUATOR INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
3	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
4	Driver-side air mix actuator (See AIR MIX ACTUATOR REMOVAL [FULL-AUTO AIR CONDITIONER (E)].) (See AIR MIX ACTUATOR INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
5	Passenger compartment temperature sensor (See PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See PASSENGER COMPARTMENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
6	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See DASH-ELECTRICAL SUPPLY UNIT INSPECTION [FULL-AUTO AIR CONDITIONER (E)].)
7	Rear vent actuator (With rear vent) (See REAR VENT ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See REAR VENT ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
8	Dash-electrical supply unit (See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See DASH-ELECTRICAL SUPPLY UNIT INSPECTION [FULL-AUTO AIR CONDITIONER (E)].)
9	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)

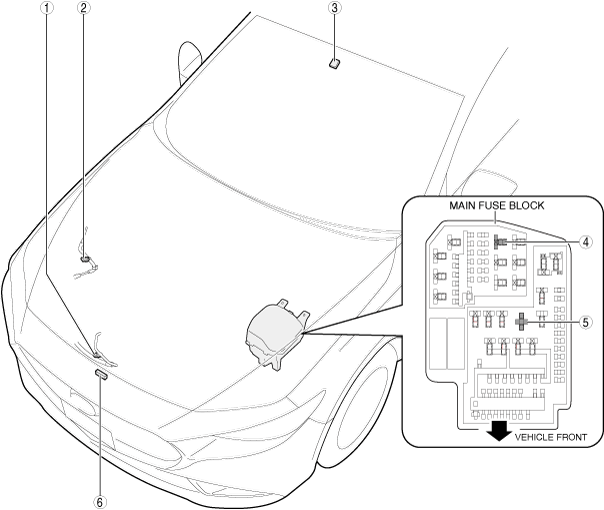

Structural View (Exterior)

am3zzw00028800

1	Refrigerant pressure sensor No.2 (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER (E)].)
2	Refrigerant pressure sensor No.1 (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].) (See REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER (E)].)
3	Solar radiation sensor/humidity sensor (with humidity sensor) (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].) (See HUMIDITY SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
4	A/C relay (See RELAY LOCATION [(E)].) (See RELAY INSPECTION.)
5	Blower relay (See RELAY LOCATION [(E)].) (See RELAY INSPECTION.)
6	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
