CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION

id091300999600

Top Tether Anchor

4SD

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(4)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(5)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(6)  Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

3.  Remove the bolts.

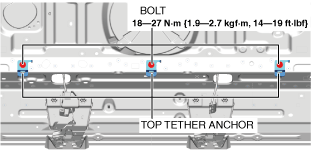

am3zzw00024589

4.  Remove the top tether anchor.

5.  Install in the reverse order of removal.

5HB

Note

•  The top tether anchors are integrated into the rear seat back frame.

•  For the top tether anchor removal/installation, refer to the rear seat back frame removal/installation. (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)
