C-PILLAR TRIM REMOVAL/INSTALLATION

id091700802200

4SD

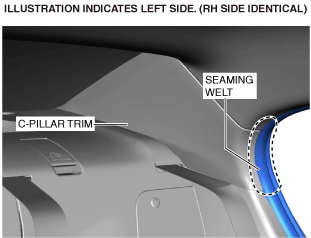

1.  Partially peel back the seaming welt.

am3zzw00021830

2.  Lower the rear seat back.

3.  Pull the C-pillar trim in the direction of the arrow in the order of (1), (2) while detaching clip A, clip B and clips C.

am3zzw00021831

4.  Remove the C-pillar trim in the direction of the arrow in the order of (1), (2) while detaching guide (1), guide (2), guide (3) and guide (4).

am3zzw00021832

5.  Install in the reverse order of removal.

5HB

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the rear package tray. (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

3.  Remove the trunk side upper trim. (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

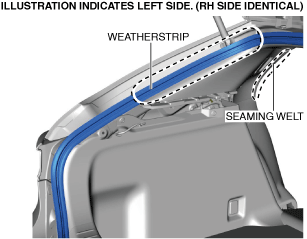

4.  Partially peel back the seaming welt.

am3zzw00021833

5.  Partially peel back the weatherstrip.

6.  Disconnect the connector. (with Bose^®)

am3zzw00021834

7.  Pull the C-pillar trim in the direction of the arrow in the order of (1), (2) while detaching clip A, clips B and clips C.

am3zzw00021837

8.  Install in the reverse order of removal.

Note

•  When replacing the C-pillar trim, remove the rear side speaker. (See REAR SPEAKER REMOVAL/INSTALLATION.)

•  When replacing the C-pillar trim, remove the rear speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
