HOOD LATCH REMOVAL/INSTALLATION

id091400006500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the upper face. (See UPPER FACE REMOVAL/INSTALLATION [(E)].)

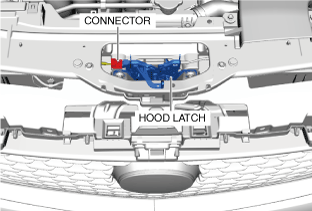

3.  Disconnect the connector.

am3zzw00022032

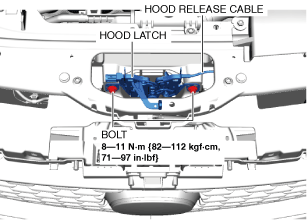

4.  Disconnect the hood release cable.

adejjw00000002

5.  Remove the bolts.

6.  Remove the hood latch. (See Hood latch Installation Note.)

7.  Install in the reverse order of removal.

Hood latch Installation Note

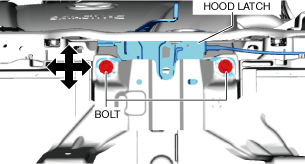

•  Refer to [HOOD ADJUSTMENT] and adjust the hood latch so that the height difference and gap of the hood is within the specification. (See HOOD ADJUSTMENT.)

am3zzw00022033
