FRONT OUTER HANDLE REMOVAL/INSTALLATION

id091400510100

Note

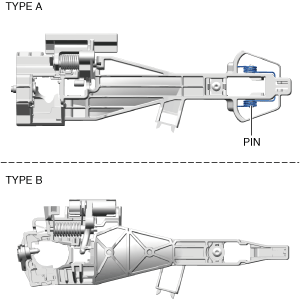

• The type of the front outer handle can be identified by its shape.

am3zzw00038533

― Type A: With pin (See TYPE A)

― Type B: No pin (See TYPE B)

TYPE A

Driver's side

1. Fully close the front door glass.

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3. Remove the following parts:

(1) Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(2) Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(3) Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

(4) Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [(E)].)

(5) Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(6) Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

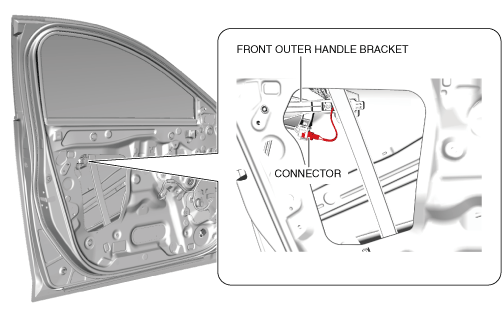

4. Disconnect the keyless antenna connector. (With advanced keyless entry system)

am3zzw00022061

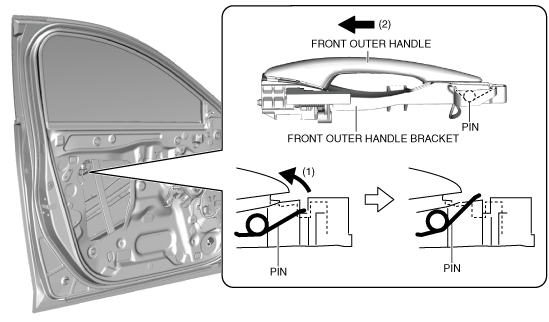

5. While pressing the front outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the front outer handle in the direction of arrow (2) and detach the front outer handle bracket pin from the front outer handle.

am3zzw00022062

6. Remove the front outer handle in the direction of the arrow shown in the figure. (See Passenger's side.)

am3zzw00022063

7. Remove the service hole cover.

am3zzw00022058

8. Loosen the screw.

am3zzw00022059

9. While moving the lever in the direction of arrow (1) shown in the figure, press the retainer in the direction of arrow (2) using a tape-wrapped screwdriver, and then secure the lever.

am3zzw00036788

10. Remove the cap. (See Driver's side.)

ac30zw00000783

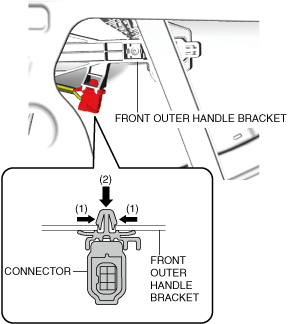

11. While pressing the tabs of the clip in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the connector tabs from the front outer handle bracket. (with advanced keyless entry system)

am3zzw00028043

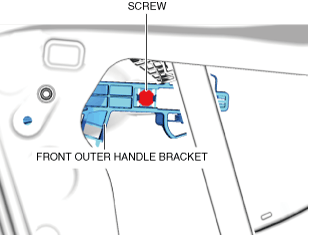

12. Loosen the screw securing the front outer handle bracket.

am3zzw00022065

Note

• The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

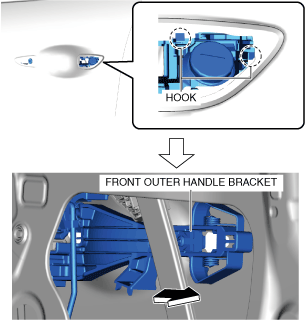

13. Pull the front outer handle bracket in the direction of arrow shown in the figure and detach the front outer handle bracket hooks from the body.

am3zzw00028595

14. Remove the front outer handle bracket and front door key cylinder as a single unit.

15. Remove the front door key cylinder. (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)

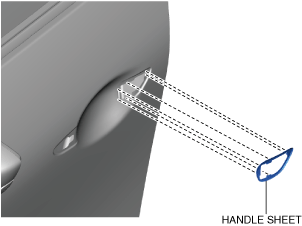

16. Remove the handle sheet from the body.

am3zzw00029707

17. Install in the reverse order of removal.

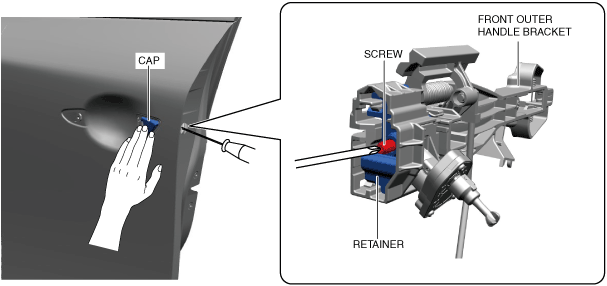

Cap installation note

1. Tighten the screw while holding the cap, and return the retainer to its original position.

am3zzw00036789

Front outer handle installation note

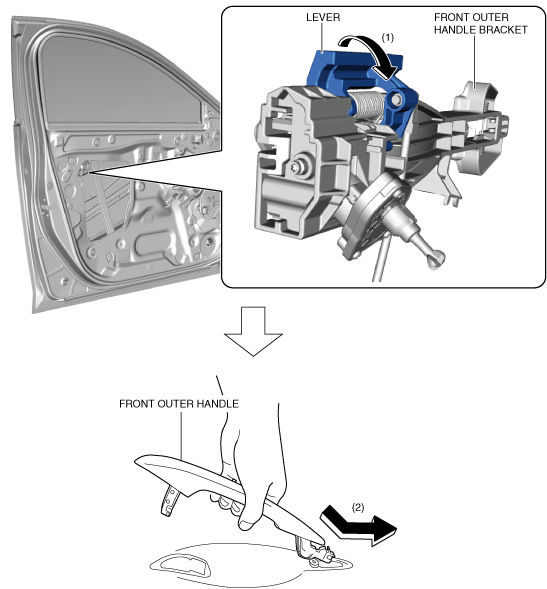

• While pressing the front outer handle bracket towards the body, move the lever in the direction of arrow (1) shown in the figure, move the front outer handle in the direction of arrow (2), and then install the front outer handle.

am3zzw00022068

Passenger's side

1. Fully close the front door glass.

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3. Remove the following parts:

(1) Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(2) Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(3) Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(4) Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [(E)].)

(5) Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

4. Disconnect the connector.

am3zzw00022069

Caution

• When removing the service hole cover, insert the remover tool so as not to damage the seal rubber.

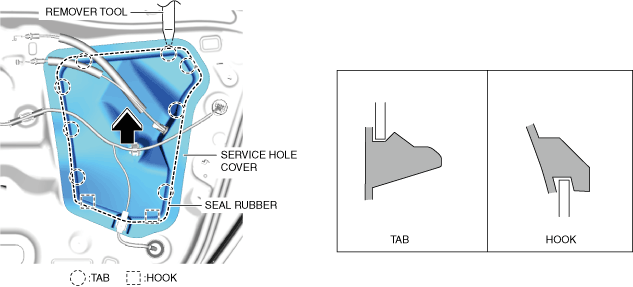

5. Detach the service hole cover tabs from the body using a remover tool.

am3zzw00030559

6. Lift the service hole cover in the direction of the arrow shown in the figure and detach the service hole cover hooks from the body.

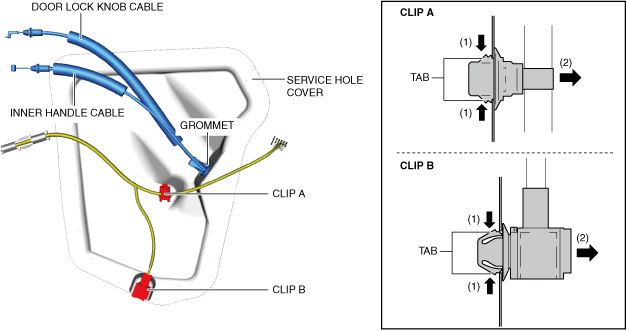

7. Remove the clip A and B.

am3zzw00028045

8. Remove the grommet.

9. Pull the door lock knob cable and the inner handle cable from the service hole cover.

10. Remove the service hole cover. (See Service hole cover installation note.)

11. Disconnect the keyless antenna connector. (With advanced keyless entry system)

am3zzw00022075

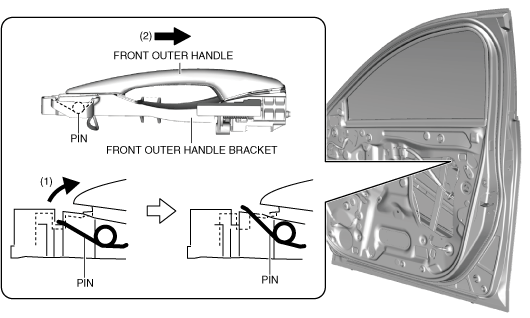

12. While pulling the front outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the front outer handle in the direction of arrow (2) and detach the front outer handle bracket pin from the front outer handle.

am3zzw00022076

13. Remove the front outer handle in the direction of the arrow shown in the figure. (See Front outer handle installation note.)

am3zzw00022077

14. Remove the service hole cover.

am3zzw00022072

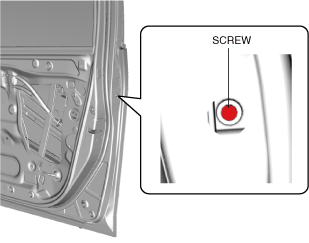

15. Loosen the screw.

am3zzw00022073

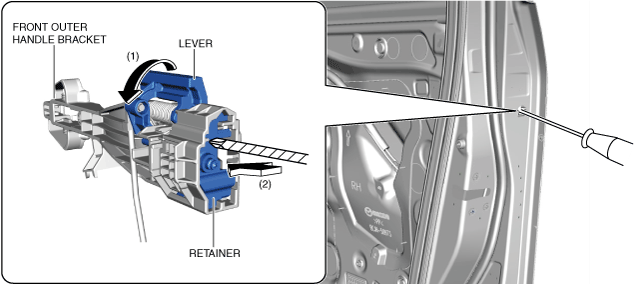

16. While moving the lever in the direction of arrow (1) shown in the figure, press the retainer in the direction of arrow (2) using a tape-wrapped screwdriver, and then secure the lever.

am3zzw00036790

17. Remove the cap. (See Front outer handle installation note.)

ac30zw00000799

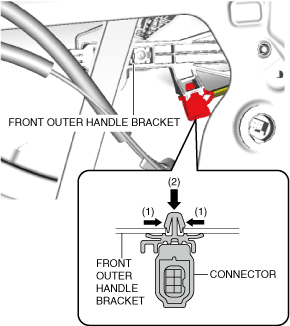

18. While pressing the tabs of the clip in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the connector tabs from the front outer handle bracket. (with advanced keyless entry system)

am3zzw00028046

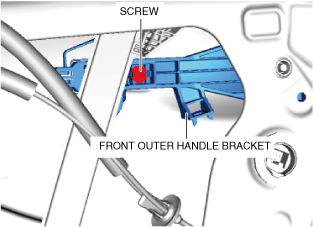

19. Loosen the screw securing the front outer handle bracket.

am3zzw00022079

Note

• The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

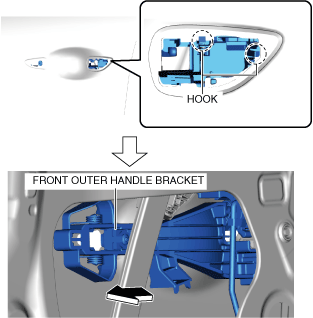

20. Pull the front outer handle bracket in the direction of arrow shown in the figure and detach the front outer handle bracket hooks from the body.

am3zzw00028596

21. Lift the front outer handle bracket in the direction of the arrow shown in the figure and pull out the rod from the rod holder. (See Front outer handle bracket installation note.)

am3zzw00022081

22. Remove the front outer handle bracket.

23. Remove the handle sheet from the body.

am3zzw00029708

24. Install in the reverse order of removal.

Cap installation note

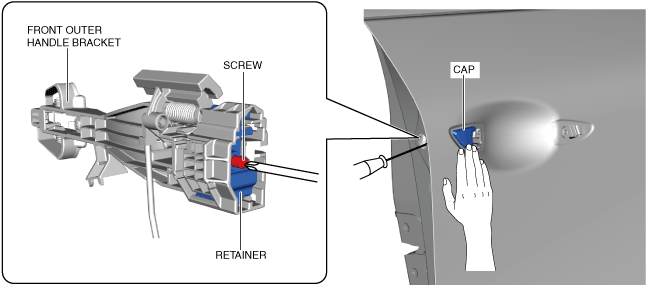

1. Tighten the screw while holding the cap, and return the retainer to its original position.

am3zzw00036791

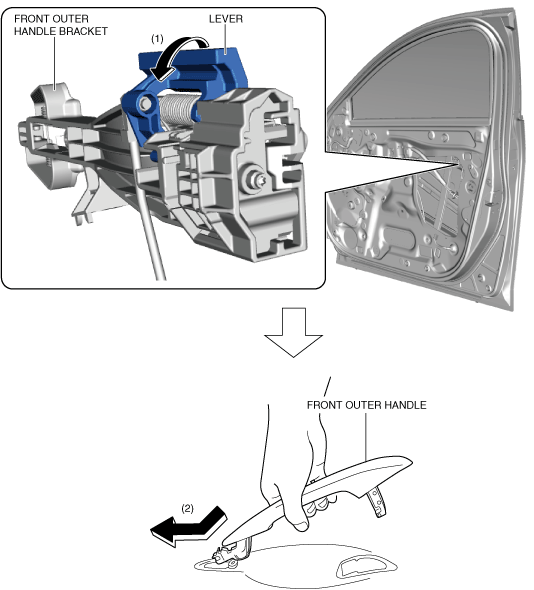

Front outer handle installation note

adejjw00000027

Front outer handle bracket installation note

• Move the rod back and forth and verify that it is inserted into the rod holder hole.

am3zzw00022083

Service hole cover installation note

• When installing the service hole cover, verify that the seal rubber is not wet.

am3zzw00031177

• If the seal rubber or a tab is damaged, replace the service hole cover.

TYPE B

Driver's side

1. Fully close the front door glass.

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3. Remove the following parts:

(1) Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(2) Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(3) Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

(4) Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [(E)].)

(5) Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(6) Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4. Remove the service hole cover.

am3zzw00038534

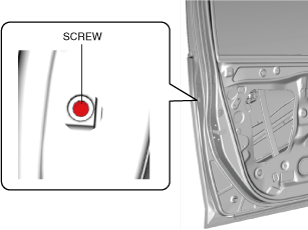

5. Loosen the screw.

am3zzw00038535

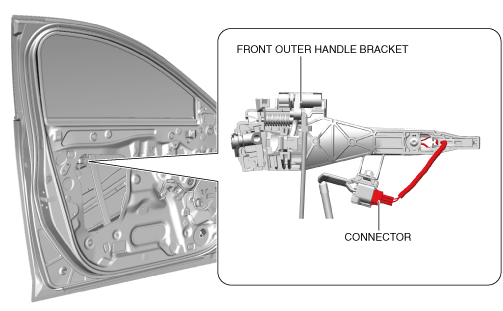

6. Disconnect the keyless antenna connector. (with advanced keyless entry system)

am3zzw00038536

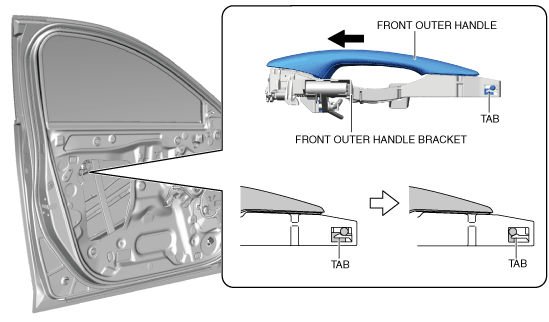

7. Pull the front outer handle in the direction of the arrow shown in the figure, and detach the front outer handle bracket tab from the front outer handle.

am3zzw00038537

8. Remove the front outer handle in the direction of the arrow shown in the figure.

am3zzw00038538

9. Remove the cap.

am3zzw00038539

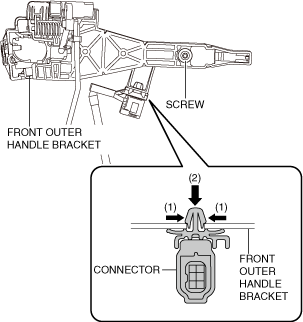

10. While pressing the tabs of the clip in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the connector tabs from the front outer handle bracket. (with advanced keyless entry system)

am3zzw00038540

11. Loosen the screw.

Note

• The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

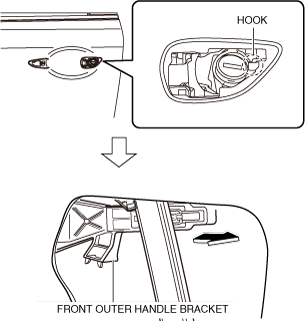

12. Pull the front outer handle bracket in the direction of arrow shown in the figure and detach the front outer handle bracket hook from the body.

am3zzw00038541

13. Remove the front outer handle bracket and front door key cylinder as a single unit.

14. Remove the front door key cylinder. (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)

15. Remove the handle sheet from the body.

am3zzw00038542

16. Install in the reverse order of removal.

Passenger's side

1. Fully close the front door glass.

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3. Remove the following parts:

(1) Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(2) Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(3) Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(4) Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [(E)].)

(5) Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

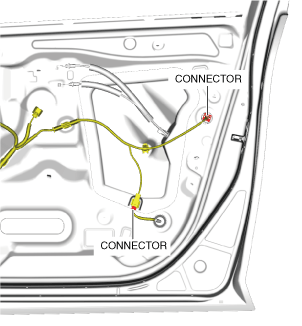

4. Disconnect the connector.

am3zzw00038543

Caution

• When removing the service hole cover, insert the remover tool so as not to damage the seal rubber.

5. Detach the service hole cover tabs from the body using a remover tool.

am3zzw00038544

6. Lift the service hole cover in the direction of the arrow shown in the figure and detach the service hole cover hooks from the body.

7. Remove clips A and B.

am3zzw00038545

8. Remove the grommet.

9. Pull the door lock knob cable and the inner handle cable from the service hole cover.

10. Remove the service hole cover. (See Service hole cover installation note.)

11. Remove the service hole cover.

am3zzw00038546

12. Loosen the screw.

am3zzw00038547

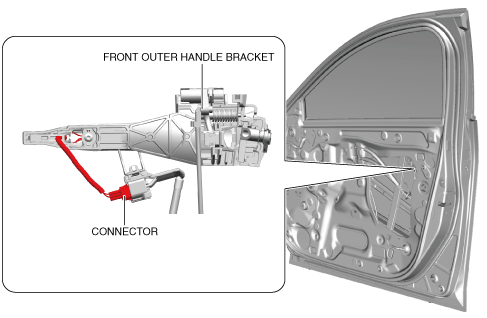

13. Disconnect the keyless antenna connector. (with advanced keyless entry system)

am3zzw00038548

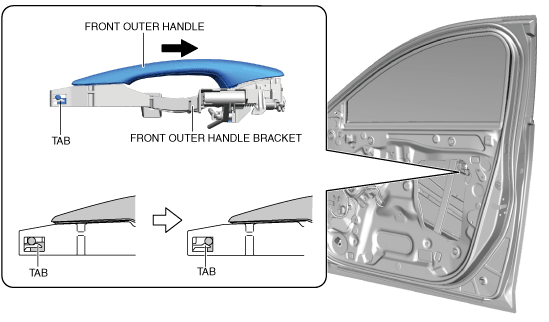

14. Pull the front outer handle in the direction of the arrow shown in the figure, and detach the front outer handle bracket tab from the front outer handle.

am3zzw00038549

15. Remove the front outer handle in the direction of the arrow shown in the figure.

am3zzw00038550

16. Remove the cap.

am3zzw00038551

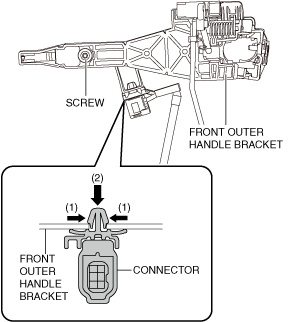

17. While pressing the tabs of the clip in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the connector tabs from the front outer handle bracket. (with advanced keyless entry system)

am3zzw00038552

18. Loosen the screw.

Note

• The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.

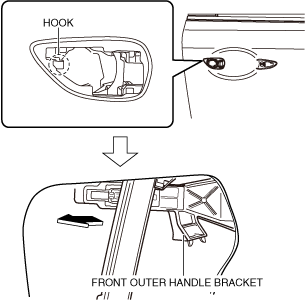

19. Pull the front outer handle bracket in the direction of arrow shown in the figure and detach the front outer handle bracket hook from the body.

am3zzw00038553

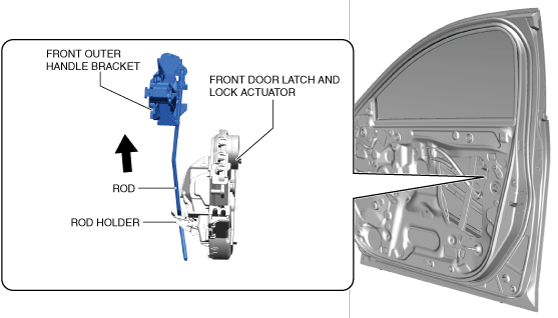

20. Lift the front outer handle bracket in the direction of the arrow shown in the figure and pull out the rod from the rod holder. (See Front outer handle bracket installation note.)

am3zzw00038554

21. Remove the front outer handle bracket.

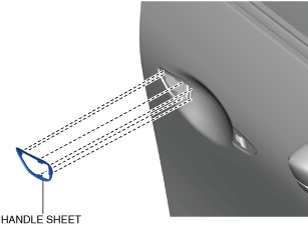

22. Remove the handle sheet from the body.

am3zzw00038555

23. Install in the reverse order of removal.

Front outer handle bracket installation note

• Move the rod back and forth and verify that it is inserted into the rod holder hole.

am3zzw00038556

Service hole cover installation note

• When installing the service hole cover, verify that the seal rubber is not wet.

am3zzw00038557

• If the seal rubber or a tab is damaged, replace the service hole cover.
