KEYLESS RECEIVER REMOVAL/INSTALLATION

id091400514300

4SD

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  C-pillar trim (LH) (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(4)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(5)  Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

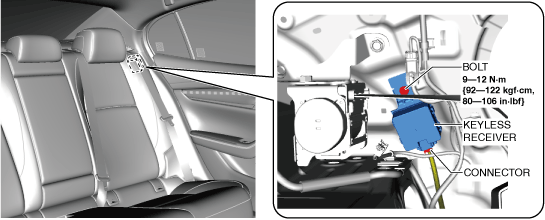

3.  Disconnect the connector.

am3zzw00022130

4.  Remove the bolt.

5.  Remove the keyless receiver.

6.  Install in the reverse order of removal.

5HB

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(3)  C-pillar trim (LH) (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

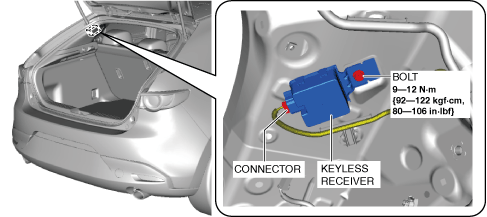

3.  Disconnect the connector.

am2zzw00000002

4.  Remove the bolt.

5.  Remove the keyless receiver.

6.  Install in the reverse order of removal.
