CONSOLE SIDE PANEL REMOVAL/INSTALLATION

id091700606600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R].) (See SHIFT LEVER REMOVAL/INSTALLATION [F66M-R].)

(3)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

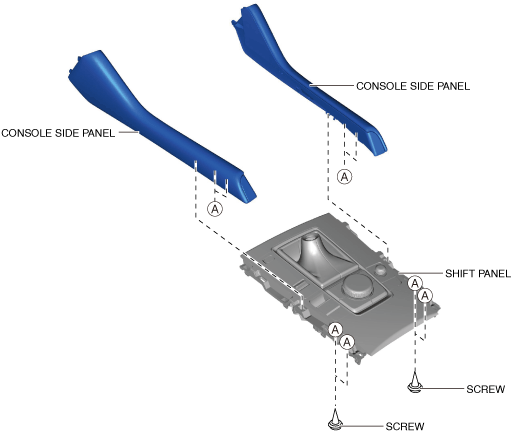

3.  Remove the screws.

am3zzw00029135

4.  Remove the console side panel from the shift panel.

5.  Install in the reverse order of removal.
