WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION

id091900801800

Note

•  If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the front deflector (RH). (See DEFLECTOR REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

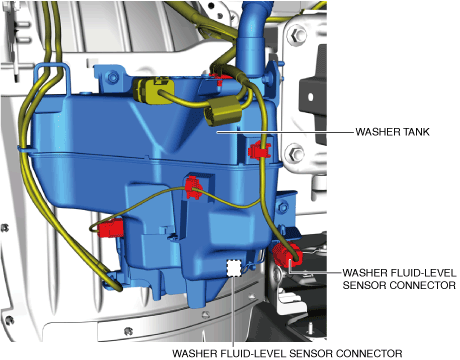

4.  Disconnect the connector.

am3zzw00031822

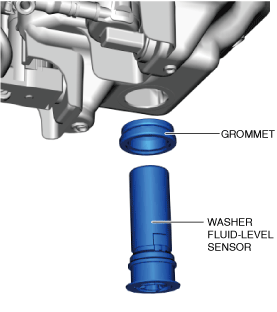

5.  Remove the washer fluid-level sensor.

am3zzw00031823

6.  Remove the grommet. (See Grommet Installation Note.)

7.  Install in the reverse order of removal.

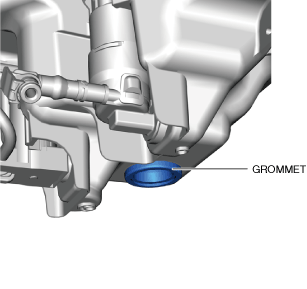

Grommet Installation Note

•  Install the grommet so that the lip of the grommet is on the outside of the washer tank.

am3zzw00031824
