SPEAKER INSPECTION

id092000880000

Front door speaker

1.  Connect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

2.  Disconnect the front door speaker connector. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

3.  Inspect the resistance between front door speaker terminals A and B.

Front door speaker resistance

Without Bose^® : 3.2—4.0 ohms

With Bose^® : 3.24—3.96 ohms

am3zzw00027720

•  If not within the specification, replace the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

Rear door speaker

1.  Connect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

2.  Disconnect the rear door speaker connector. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

3.  Inspect the resistance between rear door speaker terminals A and B.

Rear door speaker resistance

Without Bose^® : 3.2—4.0 ohms

With Bose^® : 3.24 —3.96 ohms

am3zzw00027721

•  If not within the specification, replace the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

Front center speaker

1.  Connect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

2.  Disconnect the front center speaker connector. (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.)

3.  Inspect the resistance between front center speaker terminals A and B.

Front center resistance

3.24—3.96 ohms

am3zzw00031847

•  If not within the specification, replace the front center speaker. (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.)

Rear center speaker

1.  Disconnect the negative battery cable. ((See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

2.  Disconnect the rear center speaker connector. (See REAR SPEAKER REMOVAL/INSTALLATION.)

3.  Inspect the resistance between rear center speaker terminals B and C.

ac5uuw00005590

•  If not within the specification, replace the rear center speaker. (See REAR SPEAKER REMOVAL/INSTALLATION.)

Rear side speaker

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

2.  Remove the rear side speaker. (See REAR SPEAKER REMOVAL/INSTALLATION.)

3.  Inspect the resistance between rear side speaker terminals A and B.

am3zzw00031847

•  If not within the specification, replace the rear side speaker. (See REAR SPEAKER REMOVAL/INSTALLATION.)

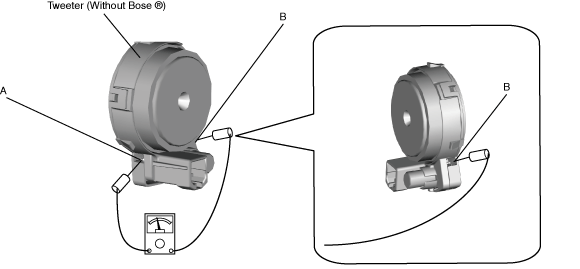

Tweeter

1.  Connect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

2.  Remove the tweeter. (See TWEETER REMOVAL/INSTALLATION.)

3.  Inspect the resistance between positions A and B shown in the figure.

Tweeter resistance

Without Bose^® : 3.9—4.7 ohms

With Bose^® : 3.4 ohms

am3zzw00029498

am3zzw00029499

•  If not within the specification, replace the tweeter. (See TWEETER REMOVAL/INSTALLATION.)

Bass-box

1.  Connect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

2.  Remove the bass-box.

3.  Inspect the resistance between bass-box terminals A and B.

Bass-box resistance

1.24 ohms

am3zzw00031848

•  If not within the specification, replace the bass-box.

Cowl side woofer

1.  Connect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

2.  Remove the cowl side woofer.

3.  Inspect the resistance between cowl side woofer terminals A and B.

am3zzw00031849

•  If not within the specification, replace the cowl side woofer.
