ELECTRICAL SUPPLY UNIT (ESU)

id094000003100


Purpose

•  The electrical supply unit (ESU) performs control of the trunk lid release actuator, rear wiper, fuel-filler lid lock actuator, brake light, licence plate light based on the input signal from the BCM.

Function

•  The control content of the electrical supply unit (ESU) is as follows.

Control table

Control

Content

Reference
Cargo compartment light
The ESU illuminates/turns off the cargo compartment light based on the signal from the BCM.
(See CARGO COMPARTMENT LIGHT.)
Liftgate opener
The ESU operates the liftgate opener actuator based on the signal from the BCM.
(See LIFTGATE OPENER SYSTEM [(E)].)
Rear wiper
The ESU operates the rear wiper motor based on the signal from the BCM.
(See REAR WIPER/WASHER SYSTEM.)
Fuel-filler lid lock system
The ESU operates the fuel-filler lid lock actuator based on the signal from the BCM.
(See POWER DOOR AND FUEL-FILLER LID LOCK SYSTEM [(E)].)
Rear combination light
The ESU operates the brake light, license plate light based on the signal from the BCM.
(See REAR COMBINATION LIGHT.)


Structural View

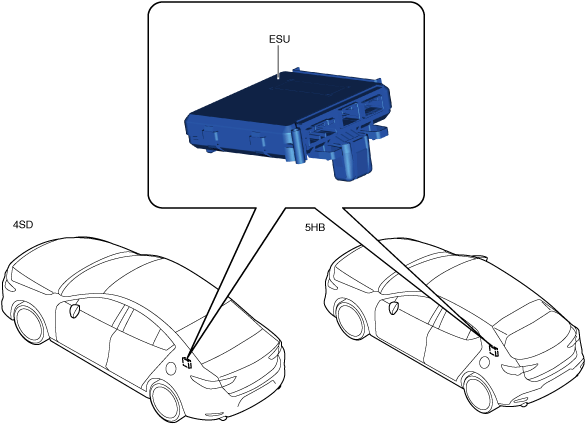

•  The electrical supply unit (ESU) is located on the inside of the trunk side trim (LH).
am3zzn00008945
