DTC P0113:00 [LF, L5]

id0102c8701500

DTC P0113:00

IAT sensor circuit high input
DETECTION CONDITION
•  The PCM monitors the IAT sensor signal. If the PCM detects that the IAT sensor voltage is above 4.9 V for 5 s, the PCM determines that the IAT sensor circuit has a malfunction.
Diagnostic support note
•  This is a continuous monitor (CCM).
•  The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
•  FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
•  The DTC is stored in the PCM memory.
POSSIBLE CAUSE
•  MAF/IAT sensor connector or terminals malfunction
•  PCM connector or terminals malfunction
•  IAT sensor malfunction

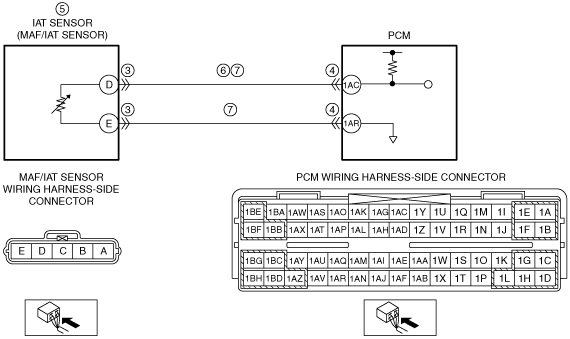

•  Short to power supply in wiring harness between MAF/IAT sensor terminal D and PCM terminal 1AC
•  Open circuit in wiring harness between the following terminals:
―  MAF/IAT sensor terminal D—PCM terminal 1AC
―  MAF/IAT sensor terminal E—PCM terminal 1AR
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA (MODE 2)/SNAPSHOT DATA HAS BEEN RECORDED
•  Has the FREEZE FRAME DATA (Mode 2)/snapshot data been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA (Mode 2)/snapshot data on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT MAF/IAT SENSOR CONNECTOR CONDITION
•  Switch the ignition to off.
•  Disconnect the MAF/IAT sensor connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, and corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal and/or connector, then go to Step 8.
No
Go to the next step.
4
INSPECT PCM CONNECTOR CONDITION
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, and corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal and/or connector, then go to Step 8.
No
Go to the next step.
5
VERIFY PID DATA FOR IAT SENSOR MALFUNCTION
•  MAF/IAT sensor and PCM connectors are disconnected.
•  Reconnect the PCM connector.
•  Connect the M-MDS to the DLC-2.
•  Access the IAT PID using the M-MDS.
•  Connect a jumper wire between MAF/IAT sensor terminals D and E (wiring harness-side).
•  Verify the IAT PID value.
•  Is the voltage below 4.9 V?
Yes
Replace the MAF/IAT sensor, then go to Step 8.
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L5].)
No
Go to the next step.
6
INSPECT IAT SENSOR SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
•  MAF/IAT sensor connector is disconnected.
•  Disconnect the PCM connector.
•  Switch the ignition to ON (engine off).
•  Measure the voltage between MAF/IAT sensor terminal D (wiring harness-side) and body ground.
•  Is there any voltage?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 8.
No
Go to the next step.
7
INSPECT IAT SENSOR CIRCUIT FOR OPEN CIRCUIT
•  MAF/IAT sensor and PCM connectors are disconnected.
•  Switch the ignition to off.
•  Inspect for continuity between the following terminals (wiring harness-side):
―  MAF/IAT sensor terminal D—PCM terminal 1AC
―  MAF/IAT sensor terminal E—PCM terminal 1AR
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit, then go to the next step.
8
VERIFY DTC TROUBLESHOOTING COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Perform the KOEO/KOER self test.
•  Is the same DTC present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [LF, L5].)
No
Go to the next step.
9
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [LF, L5].)
No
DTC troubleshooting completed.
