1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has the FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
|
No
|
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
|
|
2
|
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related service repair information availability.
• Is any related repair information available?
|
Yes
|
Perform repair or diagnosis according to the available repair information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
|
3
|
VERIFY STORED CAN COMMUNICATION DTC IN PCM AND INSTRUMENT CLUSTER
• Retrieve the PCM and instrument cluster DTC using the M-MDS.
• Is the CAN communication DTC present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
Go to the next step.
|
|
4
|
INSPECT APP SENSOR CONNECTOR CONDITION
• Switch the ignition to OFF.
• Disconnect the APP sensor connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector and/or terminals, then go to Step 10.
|
|
No
|
Go to the next step.
|
|
5
|

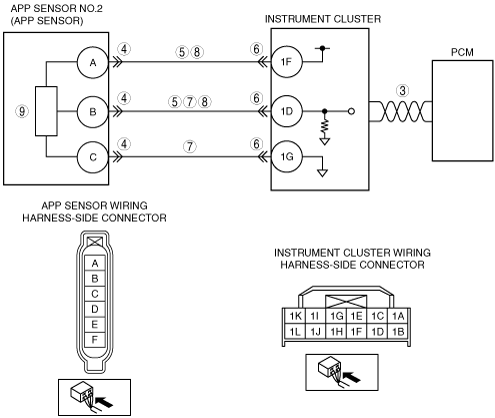

INSPECT APP SENSOR NO.2 CIRCUIT FOR SHORT TO GROUND
• APP sensor connector is disconnected.
• Inspect for continuity between the following terminals (wiring harness-side) and body ground:
-
― APP sensor terminal A
― APP sensor terminal B
• Is there continuity?
|
Yes
|
If the short to ground circuit could be detected:
• Repair or replace the wiring harness for a possible short to ground.
If the short to ground circuit could not be detected:
• Replace the instrument cluster (short to ground in the instrument cluster internal circuit).
Go to Step 10.
|
|
No
|
Go to the next step.
|
|
6
|
INSPECT INSTRUMENT CLUSTER CONNECTOR CONDITION
• Disconnect the instrument cluster connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector and/or terminals, then go to Step 10.
|
|
No
|
Go to the next step.
|
|
7
|
INSPECT APP SENSOR NO.2 SIGNAL CIRCUIT AND GROUND CIRCUIT FOR SHORT TO EACH OTHER
• APP sensor and instrument cluster connectors are disconnected.
• Inspect for continuity between APP sensor terminals B and C (wiring harness-side).
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a possible short to each other, then go to Step 10.
|
|
No
|
Go to the next step.
|
|
8
|
INSPECT APP SENSOR NO.2 CIRCUIT FOR OPEN CIRCUIT
• APP sensor and instrument cluster connectors are disconnected.
• Inspect for continuity between the following terminals (wiring harness-side):
-
― APP sensor terminal A—instrument cluster terminal 1F
― APP sensor terminal B—instrument cluster terminal 1D
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 10.
|
|
9
|
INSPECT APP SENSOR NO.2
• Reconnect all disconnected connectors.
• Inspect the APP sensor No.2)
• Is there any malfunction?
|
Yes
|
Replace the accelerator pedal, then go to the next step.
|
|
No
|
Replace the instrument cluster, then go to the next step.
|
|
10
|
VERIFY THAT DTC P0122 TROUBLESHOOTING IS COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the M-MDS.
• Run the vehicle under the FREEZE FRAME DATA stored condition.
• Is the same DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the PCM.
Go to the next step.
|
|
No
|
Go to the next step.
|
|
11
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the after repair procedure.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
DTC troubleshooting completed.
|
