VALVE CLEARANCE ADJUSTMENT [ZY, Z6]

id0110b0803300

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].)

2.  Disconnect the negative battery cable.

3.  Perform the following procedure.

Except European (U.K.) specs.
1.  Remove the fresh-air duct and the air cleaner as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZY, Z6].)
European (U.K.) specs.
1.  Set the air cleaner cover out of the way. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZY, Z6].)
2.  Remove the fresh-air duct and the air cleaner case as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZY, Z6].)

4.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [ZY, Z6].)

5.  Set the wiring harness out of the way.

6.  Remove the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION [ZY, Z6].)

7.  Remove the aerodynamic under cover No.2 and splash shield as a single unit. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.) (See SPLASH SHIELD REMOVAL/INSTALLATION.)

8.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [ZY, Z6].)

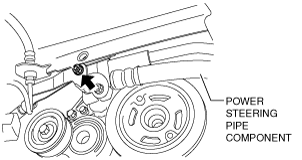

9.  Remove the nut shown in the figure and set the power steering pipe component out of the way.

am3zzw00006280

10.  Remove the engine front cover blind plug as shown in the figure.

am3zzw00006281

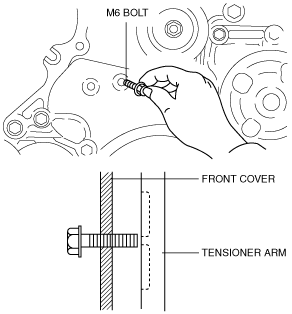

11.  Insert a M6 bolt (45 to 80 mm length bolt with threads to the end) into the right-side service hole shown in the figure, and set the bolt at a slightly outward position by loosening it approx. 2 mm from where it contacts the tensioner arm.

am3zzw00006282

12.  Release tension on the timing chain.

Note

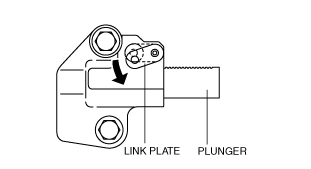

•  When the crankshaft pulley is turned counterclockwise, the timing chain loosens because the tensioner arm is pressed by the timing chain and the plunger of the chain tensioner is pressed in.
am3zzw00006283
•  When the timing chain loosens, the tensioner arm moves to the position shown in the figure and presses the M6 bolt in, which secures the tensioner arm.
am3zzw00008105
(1)  Press down the link plate of the chain tensioner from the service hole on the left side using a thin flathead screwdriver (precision screwdriver) as shown in the figure. Then rotate the crank pulley backwards (counterclockwise) with the plunger lock released.
am2zzw00000095
(2)  Rotate the M6 bolt installed to the front cover by hand and insert it to the position where it catches the inside of the rib on the tensioner arm.
am3zzw00006285

13.  Fix the camshaft using a wrench on the cast hexagon. Remove the camshaft sprocket installation bolt.

am2zzw00001662

14.  Remove the timing sprocket on the exhaust side with the timing chain positioned out of the way.

am2zzw00000100

15.  Loosen the camshaft cap installation bolts in two or three steps in the order shown in the figure, and remove the camshaft caps.

am3zzw00006286

16.  Remove the intake and exhaust camshafts.

17.  Remove the tappet.

18.  Select a proper tappet according to the result of the valve clearance inspection and install it.

Tappet to be selected: thickness of the removed tappet + measured valve clearance – standard valve clearance (IN: 0.3 mm {0.0118 in}, EX: 0.3 mm {0.0118 in})

Standard valve clearance [Engine cold]
IN: 0.27—0.33 mm {0.0107—0.0129 in}
EX: 0.27—0.33 mm {0.0107—0.0129 in}

19.  Align the timing marks on the crank pulley and the front cover, and then align the No.1 cylinder to the TDC.

am3zzw00006287

20.  Install the intake and exhaust camshafts with the No.1 cylinder so that it is near TDC of the compression stroke.

21.  Install the camshaft caps to the position of a carved seal number to shown in the figure, and tighten the camshaft installation bolts in two or three steps uniformly in the order shown in the figure.

am3zzw00006288

Tightening torque
12—14 N·m {123—142 kgf·cm, 107—123 in·lbf}

22.  Align the sprocket timing marks on the intake and exhaust camshafts so that they form a straight line in alignment with the upper horizontal surface of the cylinder head.

am3zzw00006289

23.  Fix the camshaft using a wrench on the cast hexagon. Install the camshaft sprocket installation bolt.

Tightening torque
50—60 N·m {5.1—6.1 kgf·m, 37—44 ft·lbf}

24.  Remove the M6 bolt holding the tensioner arm.

25.  Verify that there is no slack in the timing chain, and then verify that the marks on the camshaft sprocket and the crank pulley are aligned.

26.  Inspect the valve timing by rotating the crankshaft clockwise twice.

27.  Install the new engine front cover blind plug.

am3zzw00006290

Tightening torque
3.0—6.0 N·m {31—61 kgf·cm, 27—53 in·lbf}

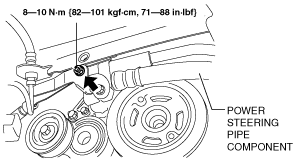

28.  Install the nut shown in the figure.

am3zzw00006291

29.  Install the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [ZY, Z6].)

30.  Install the aerodynamic under cover No.2 and splash shield as a single unit. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.) (See SPLASH SHIELD REMOVAL/INSTALLATION.)

31.  Install the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION [ZY, Z6].)

32.  Install the wiring harness.

33.  Install the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [ZY, Z6].)

34.  Install the fresh-air duct and the air cleaner as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZY, Z6].)

35.  Connect the negative battery cable.

36.  Install the battery cover. (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].)
