TIMING CHAIN REMOVAL/INSTALLATION [L3 Turbo]

id0110b3801000

Warning
•  Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
•  Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the “Fuel Line Safety Procedure”. (See BEFORE SERVICE PRECAUTION [L3 Turbo].)

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 Turbo].)

2.  Disconnect the negative battery cable.

3.  Remove the charge air cooler. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)

4.  Remove the high pressure fuel pump and high pressure fuel pump cover. (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [L3 Turbo].)

5.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [L3 Turbo].)

6.  Disconnect the ventilation hose from the cylinder head cover. (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [L3 Turbo].)

7.  Remove the coolant reserve tank with the hose still connected and set it out of the way. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [L3 Turbo].)

8.  Remove the front wheel and tire. (RH) (See GENERAL PROCEDURES (SUSPENSION).)

9.  Remove the aerodynamic under cover No.2 and splash shield as a single unit. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.) (See SPLASH SHIELD REMOVAL/INSTALLATION.)

10.  Remove the nut shown in the figure and set the power steering pipe component out of the way.

am3zzw00015426

11.  Loosen the water pump pulley bolts before removing the drive belt.

12.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [L3 Turbo].)

13.  Remove the crankshaft position (CKP) sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [L3 Turbo].)

14.  Remove in the order indicated in the table.

15.  Install in the reverse order of removal.

16.  Start the engine. And inspect and adjust the following:

•  Leakage of engine oil. (See ENGINE OIL LEVEL INSPECTION [L3 Turbo].)
•  Runout and contact of pulley and belt.
•  Verify the ignition timing, idle speed and idle mixture. (See ENGINE TUNE-UP [L3 Turbo].)

am3zzw00021079

1
Cylinder head cover
(SeeCylinder Head Cover Removal Note.)
(SeeCylinder Head Cover Installation Note.)
2
Crankshaft pulley lock bolt
(SeeCrankshaft Pulley Lock Bolt Removal Note.)
(SeeCrankshaft Pulley Lock Bolt Installation Note.)
3
Crankshaft pulley
4
Water pump pulley
5
Drive belt idler pulley
6
Drive belt idler pulley
7
No. 3 engine mount
(SeeNo.3 Engine Mount Removal Note.)
(SeeNo.3 Engine Mount Installation Note)
8
Front oil seal
(See FRONT OIL SEAL REPLACEMENT [L3 Turbo].)
9
Engine front cover
(SeeEngine Front Cover Installation Note.)
10
Chain tensioner
(SeeChain Tensioner Removal Note.)
11
Tensioner arm
12
Chain guide
13
Timing chain
(SeeTiming Chain Installation Note.)
14
Oil pump chain tensioner
15
Oil pump chain guide
16
Oil pump driven sprocket
(SeeOil Pump Driven Sprocket Removal/Installation Note.)
17
Oil pump chain
18
Crankshaft sprocket
19
Oil pump drive sprocket
(SeeOil Pump Drive Sprocket Installation Note.)


Cylinder Head Cover Removal Note

1.  Set the wiring harness out of the way.

2.  Remove the wiring harness bracket with the wiring harness still connected and set it out of the way.

am3zzw00015428

3.  Remove the wiring harness bracket.

am3zzw00015429

4.  Loosen the cylinder head cover bolts in the order shown in the figure.

am3zzw00015430


Crankshaft Pulley Lock Bolt Removal Note

1.  Remove the cylinder block lower blind plug.

am3zzw00015431

2.  Rotate the crankshaft in the direction of the engine rotation until the No. 1 piston is at the point prior to top dead center (TDC) of the compression stroke.

3.  Install the SST.

am3zzw00015432

4.  Rotate the crankshaft in the direction of the engine rotation so that the No.1 piston is at TDC of the compression stroke. (Until the counterweight contacts the SST and stops.)

5.  Hold the crankshaft pulley using the SSTs.

am3zzw00015433


No.3 Engine Mount Removal Note

Note
•  If the oil pan is removed, note that the method for securing the engine differs.

Oil pan is removed

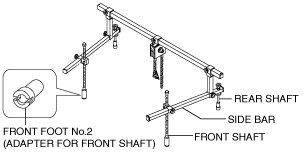

1.  Install the SST using the following procedures.

am3zzw00015434

Caution
•  Refer to the SST instruction manual for the basic handing procedure.
(1)   Remove the installation bolt for the bracket securing the lower radiator hose.
am3zzw00015435
(2)   Set the bracket securing the lower radiator hose aside to prevent it from interfering with the front shaft of the SST (right side)
(3)  As shown in the figure, set the rear shafts of the SST to the left and right shock absorber bolts.
am3zzw00008605
(4)  Install front foot No.2 to the left/right front shaft of the SST, then align the groove of the front shaft of the SST with the folded up part of the vehicle as shown in the figure.
am3zzw00015436
(5)  Adjust the positions of the SST side bars so that they are the same height (left and right) and horizontal. Make sure each joint is securely tightened.
am3zzw00015437


Oil pan is not removed

1.  Support the engine (oil pan) using a commercially available engine lifter.

am3zzw00015438


Chain Tensioner Removal Note

1.  Press the timing chain tensioner ratchet to the left using a thin flathead screwdriver (precision screwdriver) to unlock the plunger.

am3zzw00015439

2.  Slowly press the plunger back in the direction shown in the figure while pressing the ratchet.

am3zzw00015440

3.  Release the ratchet with the plunger still pressed down.

am3uuw00006030

4.  Press-in the plunger until the ratchet position is as indicated in the figure, and then insert the wire or paper clip to lock the plunger.

am3zzw00015441


Oil Pump Driven Sprocket Removal/Installation Note

1.  Temporarily install the crankshaft pulley and crankshaft pulley lock bolt to the crankshaft, and lock the oil pump against rotation as shown in figure.

am3zzw00015442

2.  Remove/install the oil pump driven sprocket, and then remove the crankshaft pulley and crankshaft pulley lock bolt.

Tightening torque
20—30 N·m {2.1—3.0 kgf·m, 15—22 ft·lbf}


Oil Pump Drive Sprocket Installation Note

1.  Assemble the oil pump drive sprocket as shown in the figure.

am3zzw00015443


Timing Chain Installation Note

1.  Install the SST to the camshaft as shown in the figure.

am3zzw00015444

2.  Install the timing chain.

3.  Remove the wire or paper clip from the chain tensioner and apply tension to the timing chain.


Engine Front Cover Installation Note

1.  Apply silicone sealant to the engine front cover as shown in the figure.

am3zzw00015445

Caution
•  Install the engine front cover before the applied silicone sealant starts to harden.
•  Completely remove any oil, dirt, sealant, or other foreign matter adhering to the engine front cover and engine front cover installation surface. If any oil, dirt, sealant, or other foreign matter is not removed from the space between the engine front cover and engine front cover installation surface, it may cause a sealing malfunction.
Thickness
A: 2.2—3.2 mm {0.09—0.12 in}
B: 1.5—2.5 mm {0.06—0.098 in}

2.  Tighten the engine front cover installation bolts in the order as shown in the figure.

am3zzw00015446

No.

Tightening Torque
1―18
8—11 N·m {82—112 kgf·cm, 71—97 in·lbf}
19―22
40—55 N·m {4.1—5.6 kgf·m, 30—40 ft·lbf}


No.3 Engine Mount Installation Note

Note
•  Retighten the No.3 engine mount stud bolts when the No.3 engine mount nuts are loosened.

1.  Tighten the No.3 engine mount stud bolts.

am3zzw00015447

Tightening torque
7—13 N·m {72—132 kgf·cm, 62—115 in·lbf}

2.  Temporarily tighten the No.3 engine mount installation bolts and nuts.

3.  Tighten the No.3 engine mount installation bolts and nuts in the order as shown in the figure.

am3zzw00015448

No.

Tightening torque
1
75—104 N·m {7.7—10 kgf·m, 56—76 ft·lbf}
2
71—93 N·m {7.3—9.4 kgf·m, 53—68 ft·lbf}


Crankshaft Pulley Lock Bolt Installation Note

1.  Install the SST to the camshaft as shown in the figure.

am3zzw00015444

2.  Verify that the No.1 piston is at TDC of the compression stroke. (The position counterweight contacts the SST.)

3.  To position the crankshaft pulley, temporarily tighten it and, using a suitable bolt (M6 X 1.0), fix the crankshaft pulley to the engine front cover.

am3zzw00015449

Note
•  Do not tighten the crankshaft pulley lock bolt during this step.

4.  Hold the crankshaft pulley using the SSTs.

am3zzw00015433

5.  Tighten the crankshaft pulley lock bolt in the following two steps using the SST (49 D032 316) .

Tightening torque
Step 1: 96—104 N·m {9.8—10 kgf·m, 71—76 ft·lbf}
Step 2: 87—93°

6.  Remove the bolt (M6 X 1.0) installed to the crankshaft pulley.

7.  Remove the SST from the camshaft.

8.  Remove the SST installed to the cylinder block lower blind plug hole.

9.  Rotate the crankshaft clockwise two turns and inspect the valve timing.

•  If not aligned, loosen the crankshaft pulley lock bolt and repeat from Step 1.

10.  Install the cylinder block lower blind plug.

am3zzw00015431

Tightening torque
18—22 N·m {1.9—2.2 kgf·m, 14—16 ft·lbf}


Cylinder Head Cover Installation Note

1.  Apply silicone sealant to the mating faces as shown in the figure.

am3zzw00015450
am3zzw00015451

Caution
•  Install the cylinder head cover before the applied silicone sealant starts to harden.
Thickness
5.0 mm {0.20 in}

2.  Tighten the cylinder head cover bolts in the order shown in the figure.

am3zzw00015452

Tightening torque
8.0—9.5 N·m {82—96 kgf·cm, 71—84 in·lbf}

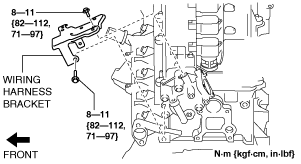

3.  Install the wiring harness bracket.

am3zzw00015453
am3zzw00015454
