OIL PAN REMOVAL/INSTALLATION [LF, L5]


id0111c4800200

Warning
•  Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.
•  A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.
•  Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L5].)

2.  Disconnect the negative battery cable.

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF, L5].)

4.  Disconnect the wiring harness.

5.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [LF, L5].)

6.  Remove the spark plugs. (See SPARK PLUG REMOVAL/INSTALLATION [LF, L5].)

7.  Remove the ventilation hose.

8.  Remove the coolant reserve tank with the hose still connected and set it out of the way. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [LF, L5].)

9.  Remove the front wheel and tire. (RH) (See GENERAL PROCEDURES (SUSPENSION).)

10.  Remove the aerodynamic under cover No.2 and splash shield as a single unit. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)(See SPLASH SHIELD REMOVAL/INSTALLATION.)

11.  Drain the engine oil. (See ENGINE OIL REPLACEMENT [LF, L5].)

12.  Remove the nut shown in the figure and set the power steering pipe component out of the way.

LF

am3uuw00003442

L5

am3uuw00002800

13.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [LF, L5].)

14.  Remove the crankshaft position (CKP) sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [LF, L5].)

15.  Remove the A/C compressor with the cooler hose still connected and secure it using wire or rope so that it is out of the way. (LF) (See A/C COMPRESSOR REMOVAL/INSTALLATION.)

16.  Disconnect the drive shaft (RH) from joint shaft, set the drive shaft (RH) out of the way. (MTX) (See DRIVE SHAFT REMOVAL/INSTALLATION.)

17.  Remove the engine front cover. (See TIMING CHAIN REMOVAL/INSTALLATION [LF, L5].)

18.  Remove in the order indicated in the table.

19.  Install in the reverse order of removal.

20.  Refill with the specified type and amount of the engine oil. (See ENGINE OIL REPLACEMENT [LF, L5].)

21.  Start the engine and confirm that there is no oil leakage.

•  If there is oil leakage, repair or replace the applicable part.

22.  Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION [LF, L5].)

23.  Inspect for the ignition timing and idle speed. (See ENGINE TUNE-UP [LF, L5].)

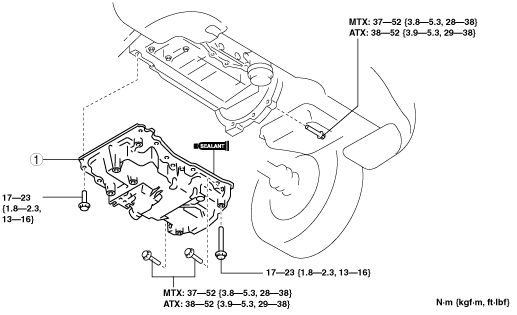

LF

am3zzw00007942

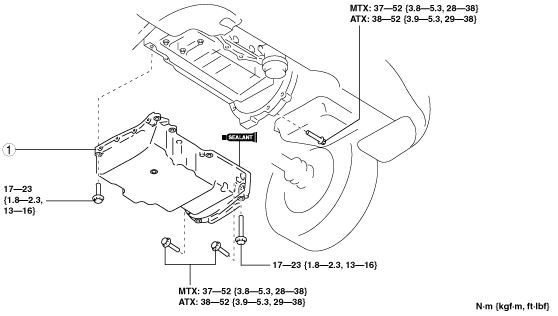

L5

am6xuw00002255

1
Oil pan


Oil Pan Removal Note

1.  Remove the oil pan using a separator tool.

am6zzw00002303


Oil Pan Installation Note

Caution
•  Apply the silicon sealant in a single, unbroken line.
•  Install the oil pan before the applied sealant starts to harden.
•  Using bolts with the old seal adhering could cause cracks in the cylinder block.
am6zzw00002304

1.  Completely clean and remove any oil, dirt, sealant or other foreign material that may be adhering to the cylinder block and oil pan.

2.  When reusing the oil pan installation bolts, clean any old sealant from the bolts.

3.  Apply silicone sealant to the oil pan along the inside of the bolt holes as shown in the figure.

am3uuw00004864

Thickness
2.2—3.2 mm {0.09—0.12 in}

4.  Install the oil pan to the cylinder block.

5.  Use a square ruler to align the oil pan and the cylinder block junction side on the engine front cover side.

am6zzw00002306

6.  Tighten the bolts in the order shown in the figure.

am3zzw00007943

Tightening torque
17—23 N·m {1.8—2.3 kgf·m, 13—16 ft·lbf}

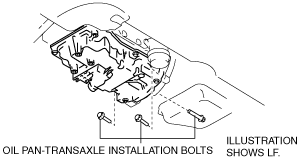

7.  Tighten the oil pan-transaxle installation bolts.

am3zzw00007944

Tightening torque
MTX: 37—52 N·m {3.8—5.3 kgf·m, 28—38 ft·lbf}
ATX: 38—52 N·m {3.9—5.3 kgf·m, 29—38 ft·lbf}
