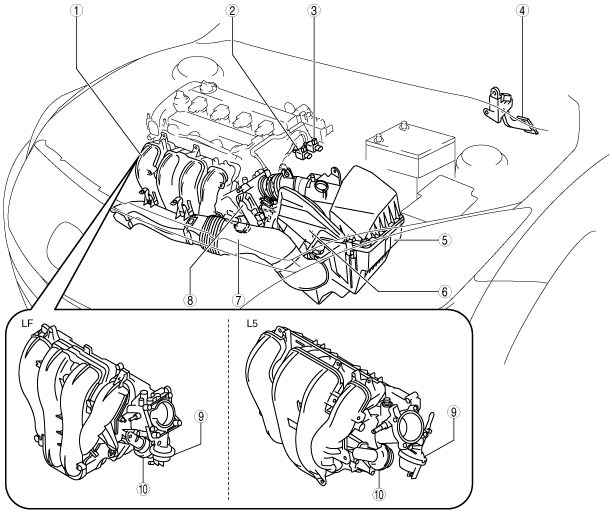

INTAKE-AIR SYSTEM LOCATION INDEX [LF, L5]

id0113a4801700

am3zzw00007737

1	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L5].) (See INTAKE MANIFOLD VACUUM INSPECTION [LF, L5].)
2	Variable intake air solenoid valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L5].) (See VARIABLE INTAKE AIR SOLENOID VALVE INSPECTION [LF, L5].)
3	Variable tumble solenoid valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L5].) (See VARIABLE TUMBLE SOLENOID VALVE INSPECTION [LF, L5].)
4	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [LF, L5].)
5	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L5].) (See AIR CLEANER ELEMENT INSPECTION [LF, L5].)
6	Resonance chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L5].)
7	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L5].)
8	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L5].) (See THROTTLE BODY INSPECTION [LF, L5].)
9	Variable tumble shutter valve actuator (See VARIABLE TUMBLE SHUTTER VALVE ACTUATOR INSPECTION [LF, L5].)
10	Variable intake air shutter valve actuator (See VARIABLE INTAKE AIR SHUTTER VALVE ACTUATOR INSPECTION [LF, L5].)
