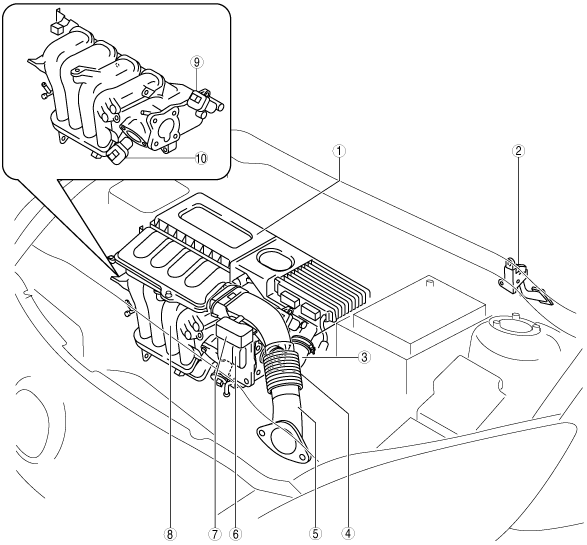

INTAKE-AIR SYSTEM LOCATION INDEX [ZY, Z6]


id0113b0801700

am3zzw00005115

1
Air cleaner
2
Accelerator pedal
3
Air hose
4
Fresh-air duct No.2
5
Fresh-air duct No.1
6
Throttle body
7
Resonance chamber
8
Intake manifold
9
Variable tumble shutter valve actuator
10
Variable intake air shutter valve actuator
