EMISSION SYSTEM LOCATION INDEX [ZY, Z6]

id0116a0803700

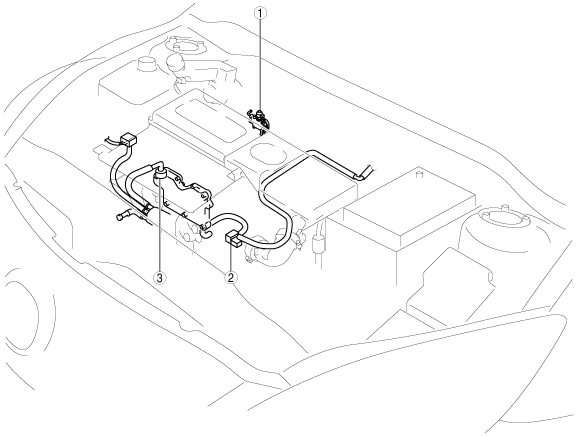

Engine Compartment Side

am3zzw00005597

1	EGR valve (Vehicles with EGR system) (See EGR VALVE REMOVAL/INSTALLATION [ZY, Z6].) (See EGR VALVE INSPECTION [ZY, Z6].)
2	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [ZY, Z6].) (See PURGE SOLENOID VALVE INSPECTION [ZY, Z6].)
3	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [ZY, Z6].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [ZY, Z6].)

Exhaust System Side

Vehicles without TWC

am3zzw00005395

Vehicles with TWC

am3zzw00008422

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [ZY, Z6].)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [ZY, Z6].)

Fuel Tank Side

am3zzw00005151

1	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [ZY, Z6].)
2	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [ZY, Z6].) (See ROLLOVER VALVE INSPECTION [ZY, Z6].) (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [ZY, Z6].) (See CHECK VALVE (TWO-WAY) INSPECTION [ZY, Z6].)
3	Fuel-filler cap
4	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [ZY, Z6].) (See CHARCOAL CANISTER INSPECTION [ZY, Z6].)
