EMISSION SYSTEM LOCATION INDEX [LF, L5]

id0116a7803700

Engine Compartment Side

am3zzw00005413

1	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [LF, L5].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [LF, L5].)
2	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [LF, L5].) (See EGR VALVE INSPECTION [LF, L5].)
3	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [LF, L5].)
4	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [LF, L5].) (See PURGE SOLENOID VALVE INSPECTION [LF, L5].)

Exhaust System Side

LF

am3uuw00002499

L5

am3uuw00004570

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [LF, L5].)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [LF, L5].)

Fuel Tank Side

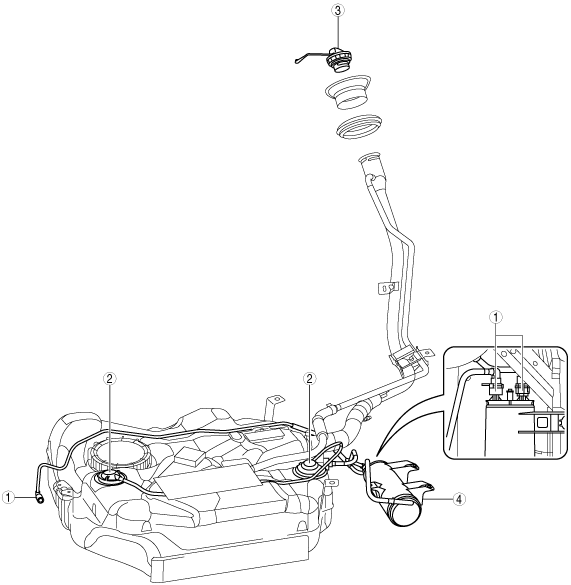

LF

am3zzw00007798

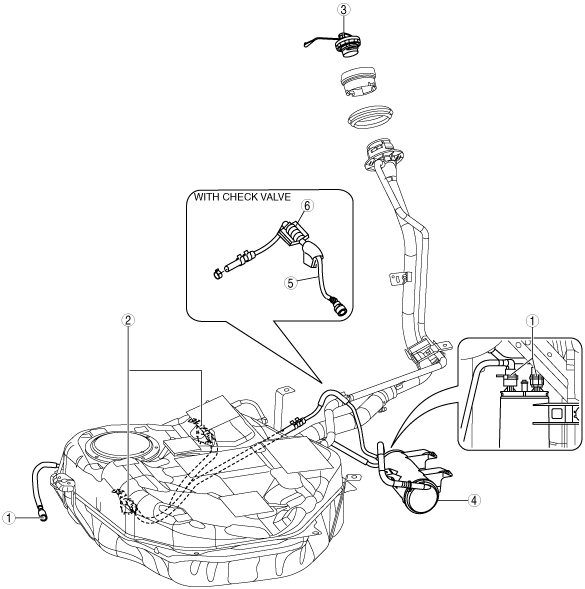

L5

am3zzw00011133

1	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [LF, L5].)
2	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [LF, L5].) (See ROLLOVER VALVE INSPECTION [LF, L5].) (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [LF, L5].) (See CHECK VALVE (TWO-WAY) INSPECTION [LF, L5].)
3	Fuel-filler cap
4	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [LF, L5].) (See CHARCOAL CANISTER INSPECTION [LF, L5].)
5	Evaporative hose (See FUEL TANK REMOVAL/INSTALLATION [LF, L5].)
6	Check valve (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [LF, L5].) (See CHECK VALVE (TWO-WAY) INSPECTION [LF, L5].)
