EMISSION SYSTEM LOCATION INDEX [L3 Turbo]

id0116b4803700

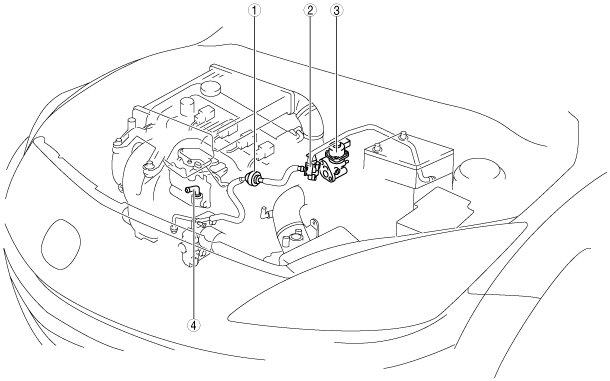

Engine Compartment Side

am3zzw00008552

1	Check valve (See CHECK VALVE INSPECTION [L3 Turbo].)
2	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [L3 Turbo].) (See PURGE SOLENOID VALVE INSPECTION [L3 Turbo])
3	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [L3 Turbo].) (See EGR VALVE INSPECTION [L3 Turbo].)
4	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [L3 Turbo].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [L3 Turbo].)

Exhaust System Side

am3uuw00005811

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)

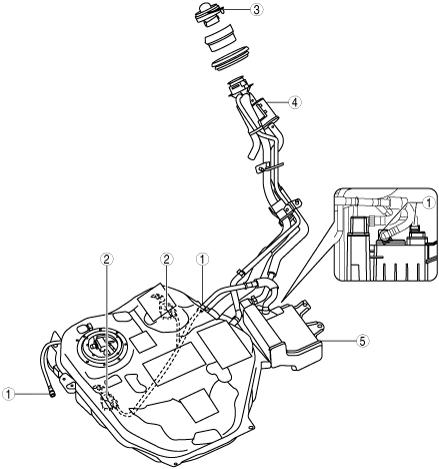

Fuel Tank Side

am3zzw00008317

1	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [L3 Turbo].)
2	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [L3 Turbo].) (See ROLLOVER VALVE INSPECTION [L3 Turbo].) (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [L3 Turbo].) (See CHECK VALVE (TWO-WAY) INSPECTION [L3 Turbo].)
3	Fuel-filler cap
4	Air filter (See AIR FILTER REMOVAL/INSTALLATION [L3 Turbo].) (See AIR FILTER INSPECTION [L3 Turbo].)
5	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [L3 Turbo].) (See CHARCOAL CANISTER INSPECTION [L3 Turbo].)
