NEUTRAL SWITCH INSPECTION [L3 Turbo]


id0140b6800800

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 Turbo].)

2.  Disconnect the negative battery cable.

3.  Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R (EXCEPT MZR 2.0 DISI i-stop)].)

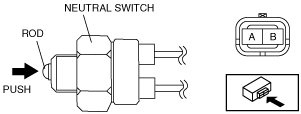

4.  Inspect for continuity between the neutral switch terminals using an ohmmeter.

am6xuw00001347

•  If not as specified, replace the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R (EXCEPT MZR 2.0 DISI i-stop)].)

Specification

Measured condition

Continuity

Rod pushed
Continuity detected
Except above
No continuity
