STARTER INTERLOCK SWITCH INSPECTION [MZR 2.0 DISI i-stop]

id0140j1889100

1.  Verify that the starter interlock switch is installed properly.

2.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

3.  Disconnect the negative battery cable.

4.  Disconnect the starter interlock switch connector. (See CLUTCH PEDAL REMOVAL/INSTALLATION.)

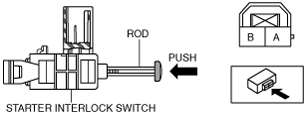

5.  Inspect for continuity between the starter interlock switch terminals using an ohmmeter.

am3zzw00008583

•  If not as specified, replace the starter interlock switch.
(See CLUTCH PEDAL REMOVAL/INSTALLATION.)

Specification

Measured condition

Clutch pedal position

Continuity
Rod pushed
Clutch pedal released
Continuity detected
Except above
Clutch pedal depressed
No continuity
