ELECTRIC AT OIL PUMP DRIVER REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop]


id0140j1889700

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

2.  Disconnect the negative battery cable.

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

4.  Remove the air cleaner and the air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

5.  Remove the fresh air duct. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

6.  Disconnect the electric AT oil pump driver connector.

7.  Remove the electric AT oil pump driver and the bracket as a single unit.

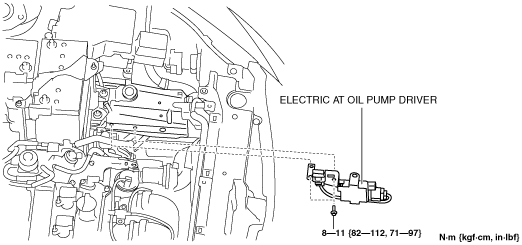

am3zzw00009931

8.  Remove the electric AT oil pump driver from the bracket.

9.  Install in the reverse order of removal.
