STEERING LOCATION INDEX

id061400800100

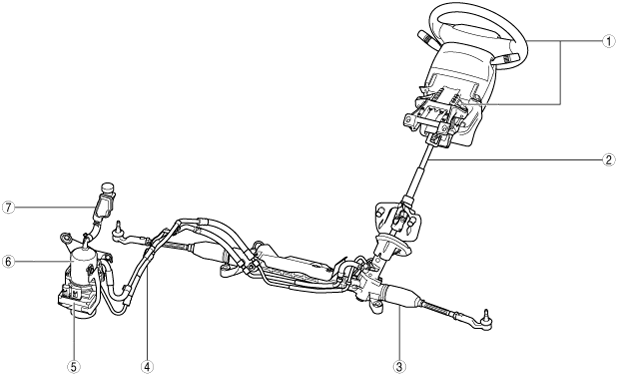

L.H.D.

am3zzw00004858

1	Steering wheel and column (See STEERING WHEEL AND COLUMN INSPECTION.) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
2	Steering shaft (See STEERING SHAFT INSPECTION.)
3	Steering gear and linkage (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION [L.H.D.].) (See STEERING GEAR AND LINKAGE DISASSEMBLY.) (See STEERING GEAR AND LINKAGE INSPECTION.) (See STEERING GEAR AND LINKAGE ASSEMBLY.)
4	Power steering fluid line component (See POWER STEERING FLUID LINE COMPONENT REMOVAL/INSTALLATION [L.H.D.].)
5	EHPAS CM (See ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS) CONTROL MODULE CONFIGURATION.) (See ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS) CONTROL MODULE INSPECTION.)
6	Electric power steering oil pump (See ELECTRIC POWER STEERING OIL PUMP COMPONENT REMOVAL/INSTALLATION.) (See ELECTRIC POWER STEERING OIL PUMP COMPONENT DISASSEMBLY/ASSEMBLY.)
7	Sub tank (See AIR BLEEDING.) (See POWER STEERING FLUID INSPECTION.)

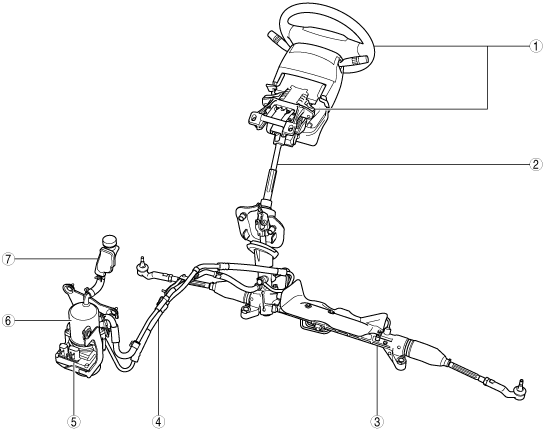

R.H.D.

am3zzw00004857

1	Steering wheel and column (See STEERING WHEEL AND COLUMN INSPECTION.) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
2	Steering shaft (See STEERING SHAFT INSPECTION.)
3	Steering gear and linkage (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION [R.H.D.].) (See STEERING GEAR AND LINKAGE DISASSEMBLY.) (See STEERING GEAR AND LINKAGE INSPECTION.) (See STEERING GEAR AND LINKAGE ASSEMBLY.)
4	Power steering fluid line component (See POWER STEERING FLUID LINE COMPONENT REMOVAL/INSTALLATION [R.H.D.].)
5	EHPAS CM (See ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS) CONTROL MODULE CONFIGURATION.) (See ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS) CONTROL MODULE INSPECTION.)
6	Electric power steering oil pump (See ELECTRIC POWER STEERING OIL PUMP COMPONENT REMOVAL/INSTALLATION.) (See ELECTRIC POWER STEERING OIL PUMP COMPONENT DISASSEMBLY/ASSEMBLY.)
7	Sub tank (See AIR BLEEDING.) (See POWER STEERING FLUID INSPECTION.)
