FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION

id091000800600

Type A

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(2)  Front energy-absorbing form (See ENERGY-ABSORBING FORM REMOVAL/INSTALLATION.)

3.  Remove the bolts A.

am3zzw00006419

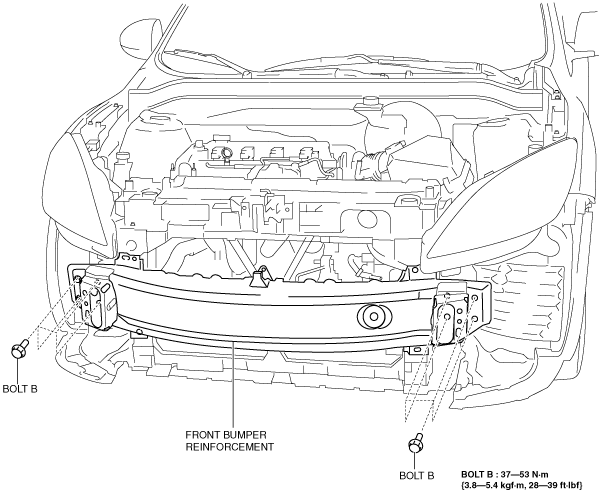

4.  Remove the bolts B.

am3zzw00006420

5.  Remove the front bumper reinforcement.

6.  Install in the reverse order of removal.

Type B

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(2)  Seal plate (See SEAL PLATE REMOVAL/INSTALLATION.)

3.  Remove the bolts A.

am3uuw00003634

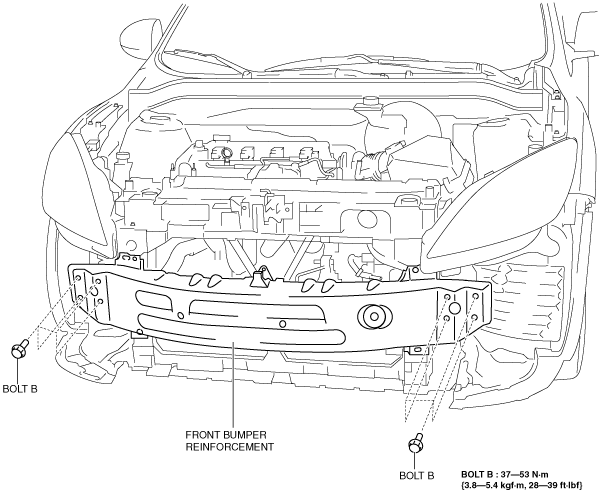

4.  Remove the bolts B.

am3uuw00003635

5.  Remove the front bumper reinforcement.

6.  Install in the reverse order of removal.
