FRONT SEAT BACK TRIM REMOVAL/INSTALLATION

id091300912000

Warning

•  Handling a front seat (with built-in side air bag) improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings before handling a front seat (with built-in side air bag). (See AIR BAG SYSTEM SERVICE WARNINGS.)

Caution

•  After removing a front seat, do not operate the slider lever. If the slider lever is operated, the left and right slide positions will deviate, and the slide adjuster may be damaged after the front seat is installed.

•  Verify that there are no malfunctions in the sliding mechanism after installing a front seat.

•  When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean rag so as not to damage or soil the seat.

Removal

1.  Switch the ignition to off.

2.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L5].) (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

3.  Disconnect the negative battery cable and wait 1 min or more.

4.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

5.  Remove the headrest.

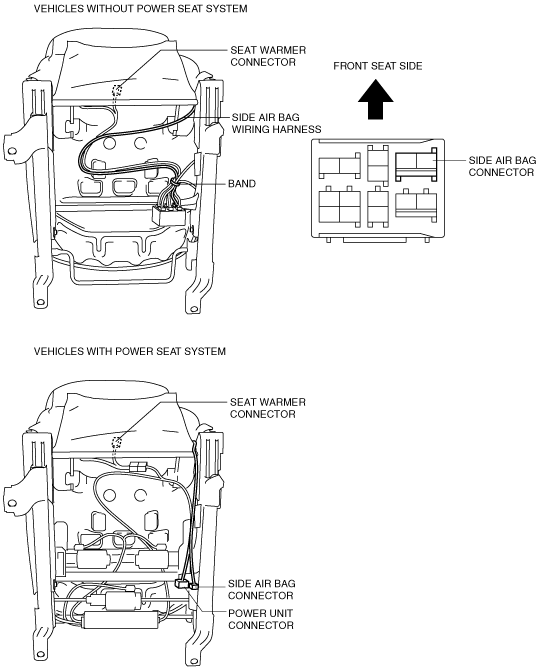

6.  Cut the band securing the harness.

L.H.D.

am3zzw00006532

R.H.D.

am3zzw00006533

7.  Disconnect the side air bag connector and seat warmer connector (Vehicles with seat warmer).

8.  Slide hook A in the order of (1), (2), (3) shown in the figure to detach it from hook B.

am3zzw00006534

9.  Open the fastener.

am3uuw00003530

10.  Remove the clip A then remove the lumbar support lever (Vehicles with lumbar support).

am3zzw00005677

11.  Partially peal back the front seat back trim, release the pole guide tabs in the direction of arrow (4) shown in the figure, then pull the pole guide out in the direction of arrow (5).

12.  Remove the nut and remove the holder bracket A.

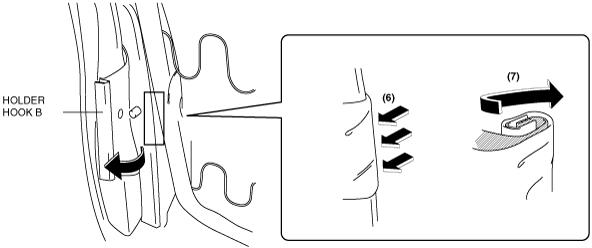

13.  Remove the holder hook B in the order of (6), (7) as shown in the figure.

am3zzw00006535

am3zzw00006536

14.  Pull out part A shown in the figure to the front.

am3uuw00003534

15.  Remove the seat back trim and the seat back pad as a single unit from the seat frame by pulling them in the direction of the arrow.

am3zzw00006537

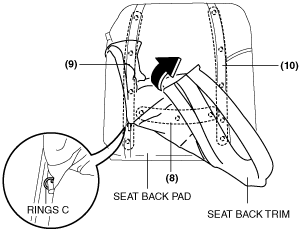

16.  Partially peal back the seat back trim from the seat back pad, remove rings C in the order of (8), (9), (10) shown in the figure, then remove the seat back trim.

am3uuw00003536

Installation

1.  Install the seat back trim to the front seat back pad, install the rings C in the order of (1), (2), (3) shown in the figure, then install the seat back trim.

am3uuw00003537

2.  Install the seat back trim and the seat back pad as a single unit from the seat frame by pushing them in the direction of the arrow

am3zzw00006538

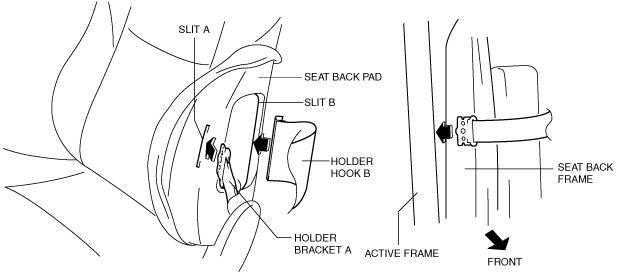

3.  Pass holder bracket A through slit A, holder hook B through slit B of the seat back pad.

am3zzw00006539

Caution

•  Install it without twisting the sleeve.

•  Get the holder bracket through between active frame and seat back frame.

4.  Push the part A shown in the figure to the rear.

am3uuw00003540

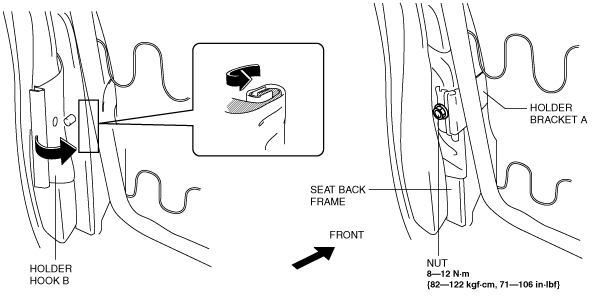

5.  Assemble the holder bracket A to the seat back frame and install the nut shown in the figure.

am3zzw00006540

6.  Install the pole guide in the direction of arrow shown in the figure.

am3uuw00003542

7.  shut the fastener.

8.  Install the clip A to the lumber support lever, then install the lumber support lever (Vehicles with lumbar support).

am3zzw00005678

9.  Slide hook A in the order of (4), (5), (6) shown in the figure to install it to hook B

am3zzw00006541

10.  Connect the side air bag connector and seat warmer connector (Vehicles with seat warmer).

11.  Install the band, while tighten the harness.

L.H.D.

am3zzw00006532

R.H.D.

am3zzw00006533
