HEADLINER REMOVAL/INSTALLATION

id091700801600

1.  Shift to the D (ATX) or 4th gear (MTX) position. (4SD)

2.  Disconnect the negative battery cable.

3.  Remove the rain sensor cover. (Vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION)

4.  Disconnect the rain sensor connector. (Vehicles with auto light/wiper system)

5.  Partially peel back the seaming welts.

6.  Remove the following parts:

(1)  Sunroof seaming welt (vehicles with sunroof)

(2)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(6)  Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(7)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(8)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(9)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(10)  Trunk side upper trim (5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(11)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(12)  Map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(13)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(14)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

7.  Disconnect the roof wiring harness connector and remove the roof wiring harness connector clip from the body.

8.  Disconnect the rear washer hose. (5HB)

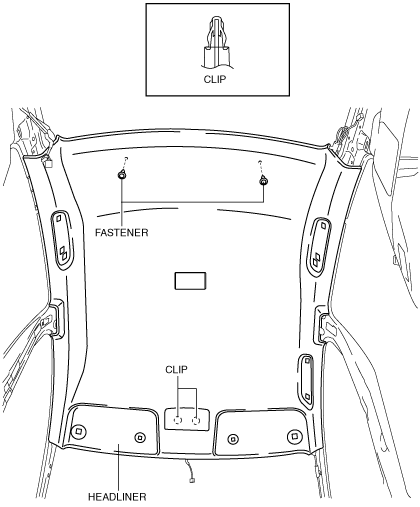

9.  Remove the fasteners.

4SD

am3zzw00013400

5HB

am3zzw00013401

10.  Remove the clips, and then remove the headliner.

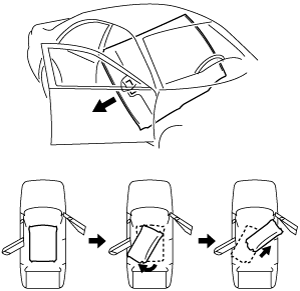

11.  Take the headliner out from the opened front passenger-side door. (4SD)

e3u917zw7101

12.  Take the headliner out from the opened liftgate. (5HB)

e3u917zw7102

13.  Install in the reverse order of removal. (See Headliner Replacement Note)

Headliner Replacement Note

Caution

•  When the headliner replacement always securely install the cover to the headliner to assure that the intruder sensor functions correctly. (Vehicles with intruder sensor)

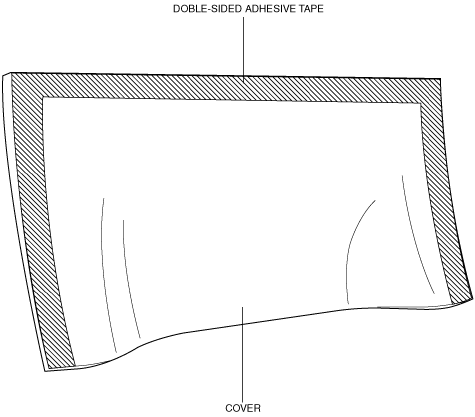

1.  Affix double-sided adhesive tape to the position shown in the figure.

am3zzw00006922

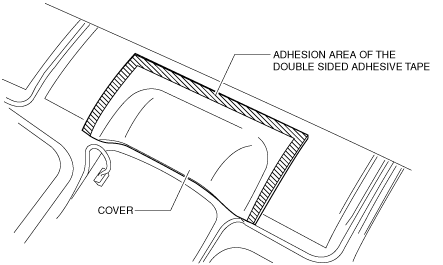

2.  Press the adhesion area of the double-sided adhesive tape and install the cover.

am3zzw00006923

Note

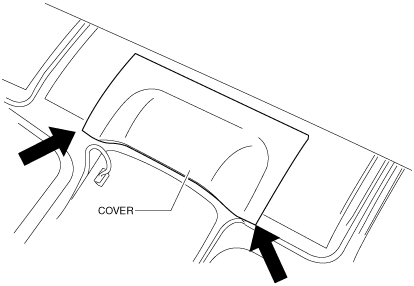

•  Pull in the position indicated by the arrow in the figure, and verify that the cover does not deviate, and that there are no tears or pealing.

am3zzw00006924
