LIFTGATE LOWER TRIM REMOVAL/INSTALLATION


id091700803800

1.  Remove the liftgate upper trim. (SeeLIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

2.  Remove the liftgate side trim. (SeeLIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

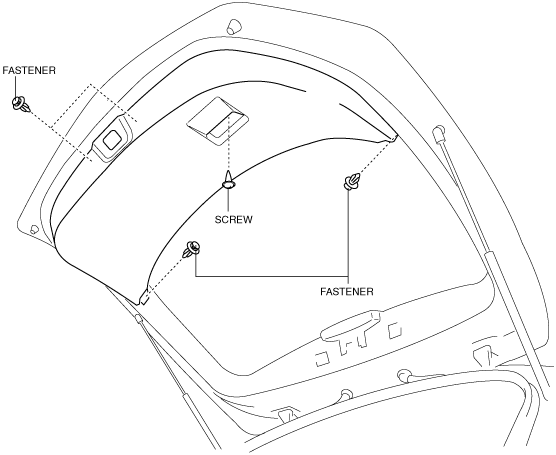

3.  Remove the screw and fasteners.

am3uuw00004889

4.  Pull the liftgate lower trim in the direction of arrow (1), (2), (3), then detach clips A, B, pin C and D from the liftgate.

am3uuw00004890

5.  Remove the liftgate lower trim.

6.  Install in the reverse order of removal.
