DASHBOARD UPPER PANEL REMOVAL/INSTALLATION

id091700989100

L.H.D.

Vehicles Without Bose®

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(2)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(3)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(4)  Center cover (See CENTER COVER REMOVAL/INSTALLATION.)

3.  Remove the screw.

4.  Pull up the dashboard upper panel in the direction of arrow shown in the figure, then remove the clip.

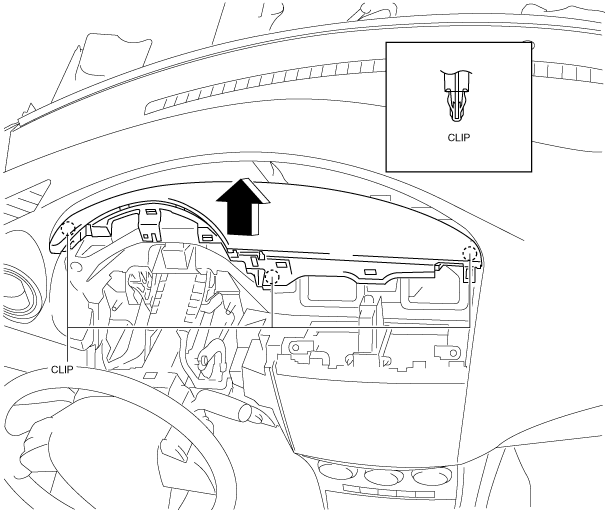

am3zzw00005880

5.  Pull up the dashboard upper panel in the direction of arrow shown in the figure, then remove the clips.

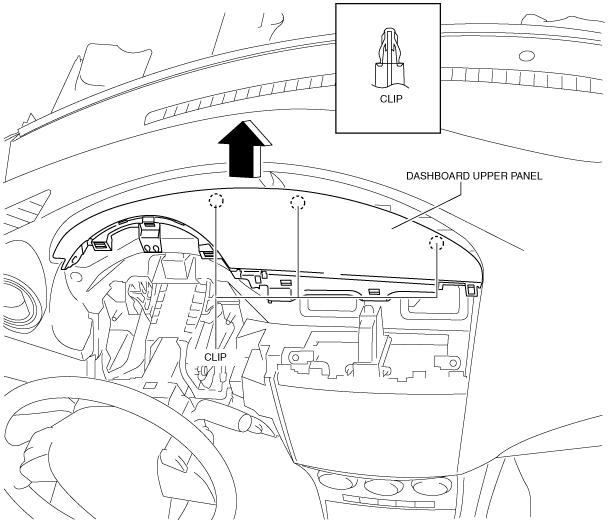

am3zzw00006588

6.  Remove the dashboard upper panel.

7.  Install in the reverse order of removal.

Vehicles With Bose®

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(2)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(3)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(4)  Center cover (See CENTER COVER REMOVAL/INSTALLATION.)

3.  Remove the screw.

4.  Pull up the dashboard upper panel in the direction of arrow shown in the figure, then remove the clip.

am3zzw00005880

5.  Pull up the dashboard upper panel in the direction of arrow shown in the figure, then remove the clips.

am3zzw00006588

6.  Remove the dashboard upper panel.

7.  Disconnect the center speaker connector.

8.  Disconnect the microphone connector.

9.  Remove the screws then remove the dashboard upper panel No.2 from the dashboard upper panel No.1.

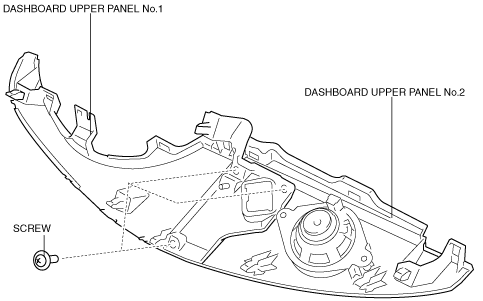

am3zzw00006589

10.  Install in the reverse order of removal.

R.H.D.

Vehicles Without Bose®

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(2)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(3)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(4)  Center cover (See CENTER COVER REMOVAL/INSTALLATION.)

3.  Remove the screw.

4.  Pull up the dashboard upper panel in the direction of arrow shown in the figure, then remove the clip.

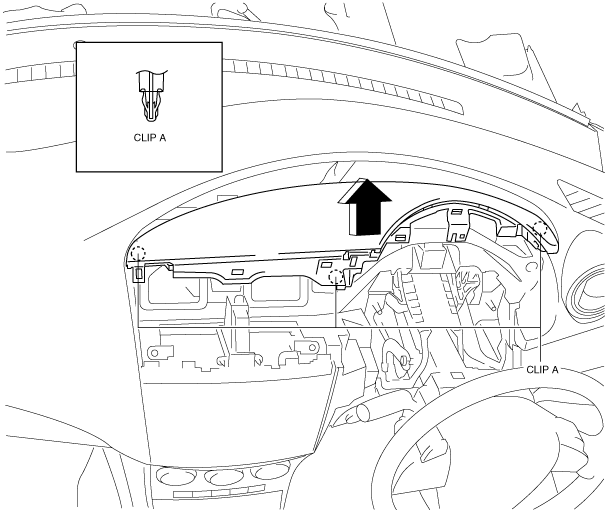

am3zzw00005882

5.  Pull up the dashboard upper panel in the direction of arrow shown in the figure, then remove the clips.

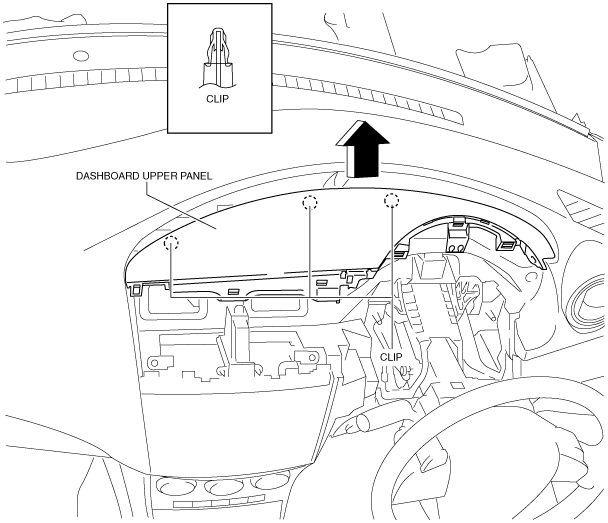

am3zzw00006590

6.  Remove the dashboard upper panel.

7.  Install in the reverse order of removal.

Vehicles With Bose®

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(2)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(3)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(4)  Center cover (See CENTER COVER REMOVAL/INSTALLATION.)

3.  Remove the screw.

4.  Pull up the dashboard upper panel in the direction of arrow shown in the figure, then remove the clip.

am3zzw00005882

5.  Pull up the dashboard upper panel in the direction of arrow shown in the figure, then remove the clips.

am3zzw00006590

6.  Remove the dashboard upper panel.

7.  Disconnect the center speaker connector.

8.  Disconnect the microphone connector.

9.  Remove the screws then remove the dashboard upper panel No.2 from the dashboard upper panel No.1.

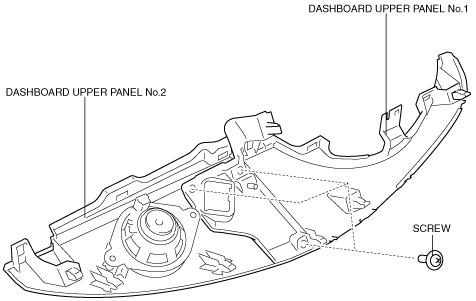

am3zzw00006591

10.  Install in the reverse order of removal.
