AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION

id091800805500

Note

•  Perform the auto leveling system initialization after newly replacing the auto leveling control module to assure that the auto leveling system operates correctly.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(4)  Grove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(5)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

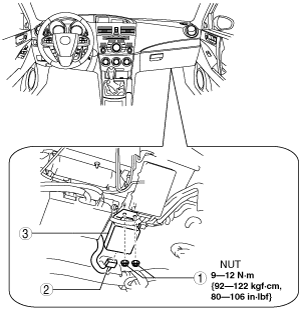

3.  Remove in the order indicated in the table.

am3zzw00006472

1	Nut
2	Connector
3	Auto leveling control module

4.  Install in the reverse order of removal.

5.  Perform the auto leveling system initialization after newly replacing the auto leveling control module. (See AUTO LEVELING SYSTEM INITIALIZATION.)
