AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION

id091800809400

L.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(4)  Grove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(5)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

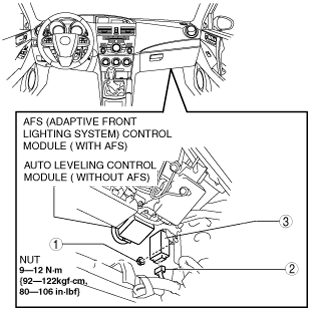

am3zzw00008117

1	Nut
2	Connector
3	Auto light/wiper control module

4.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(5)  Selector lever knob (ATX/CVT) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.) (See CVT (CONTINUOUSLY VARIABLE TRANSAXLE) SHIFT MECHANISM REMOVAL/INSTALLATION.)

(6)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(7)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(8)  Console (See CONSOLE REMOVAL/INSTALLATION.)

3.  Set the bonnet release lever out of the way. (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

4.  Remove the driver-side lower panel. (See LOWER PANEL REMOVAL/INSTALLATION.)

5.  Remove the Keyless control module. (With advanced keyless entry and push button start system) (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION.)

6.  Remove in the order indicated in the table.

am3zzw00006933

1	Nut
2	Connector
3	Auto light/wiper control module

7.  Install in the reverse order of removal.
