REAR TURN LIGHT BULB REMOVAL/INSTALLATION
id091800813800
4SD
1. Disconnect the negative battery cable.
2. Remove the trunk mat. (See TRUNK BOARD REMOVAL/INSTALLATION.)
3. Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION.)
4. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)
5. Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

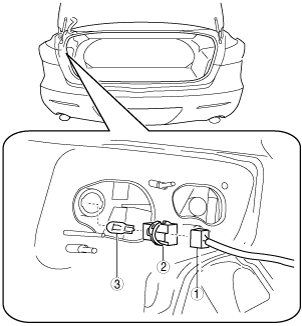

6. Remove in the order indicated in the table.
am3uuw00003215
|
|
1
|
Connector
|
|
2
|
Socket
|
|
3
|
Rear turn light bulb
|
7. Install in the reverse order of removal.
5HB
1. Disconnect the negative battery cable.
2. Remove the service hole cover.
am3uuw00004758
|
3. Remove in the order indicated in the table.
am3uuw00004759
|
|
1
|
Connector
|
|
2
|
Socket
|
|
3
|
Rear turn light bulb
|
4. Install in the reverse order of removal.
