RELAY BLOCK INSPECTION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

id0921004927z5

1.  Disconnect the negative battery cable.

2.  Remove the lower panel. (Passenger side) (R.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)

3.  Remove the glove compartment. (L.H.D.) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

4.  Remove the lower panel. (Driver side) (L.H.D.) (See LOWER PANEL REMOVAL/INSTALLATION.)

5.  Remove the relay block. (See RELAY BLOCK REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

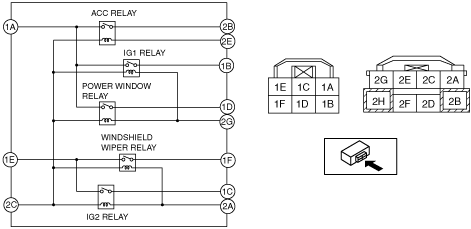

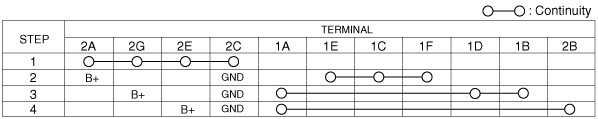

6.  Verify that the continuity is as indicated in the table.

am3uuw00002510

•  If not as indicated in the table, replace the relay block.
