CYLINDER HEAD (I) DISASSEMBLY [WITHOUT DIESEL PARTICULATE FILTER]
id0110f4500400

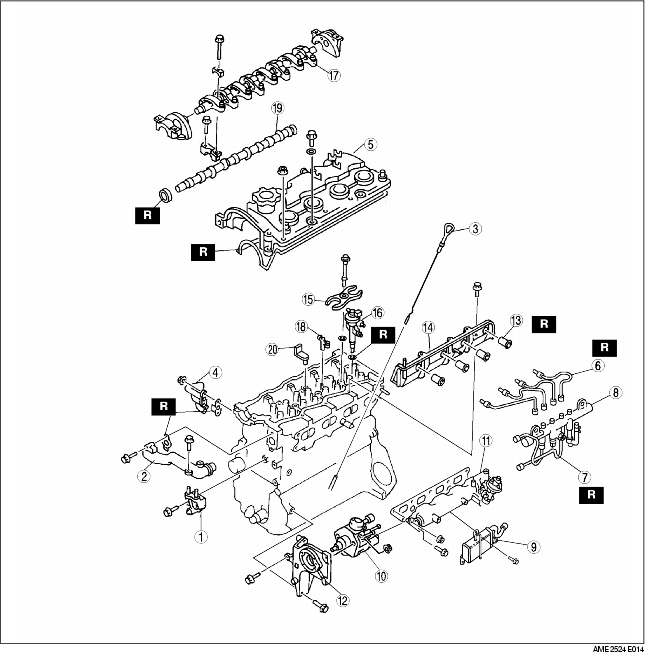

1. Disassemble in the order indicated in the table.
|
1
|
No.3 engine mount bracket
|
|
2
|
Water outlet
|
|
3
|
Dipstick
|
|
4
|
Bypass pipe
|
|
5
|
Cylinder head cover
|
|
6
|
Fuel injection pipe
|
|
7
|
Fuel injection pipe
|
|
8
|
Common rail
|
|
9
|
EGR water cooler
|
|
10
|
Injection pump
|
|
11
|
Intake manifold
|
|
12
|
Injection pump bracket
|
|
13
|
Nozzle seal
|
|
14
|
Side wall
|
|
15
|
Injection nozzle bracket
|
|
16
|
Injection nozzle
|
|
17
|
Rocker arm and rocker arm shaft
|
|
18
|
Rocker bridge
|
|
19
|
Camshaft
|
|
20
|
Breather pipe
|
Rocker Arm and Rocker Arm Shaft Disassembly Note
1. Inspect the camshaft end play.
(See CAMSHAFT END PLAY INSPECTION [WITHOUT DIESEL PARTICULATE FILTER])
2. Inspect the camshaft oil clearance.
(See CAMSHAFT OIL CLEARANCE INSPECTION [WITHOUT DIESEL PARTICULATE FILTER])
3. Loosen the bolts in two or three steps in the order shown.
