DTC P0098[L3 Turbo]

id0102b7803000

DTC P0098

Boost air temperature sensor circuit high
DETECTION CONDITION
•  If the PCM detects that the boost air temperature sensor voltage is 4.96 V or more, the PCM determines that the boost air temperature sensor circuit voltage is high.
Diagnostic support note
•  This is a continuous monitor (CCM).
•  The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
•  FREEZE FRAME DATA is available.
•  DTCs are stored in the PCM memory.
POSSIBLE CAUSE
•  Boost air temperature sensor malfunction

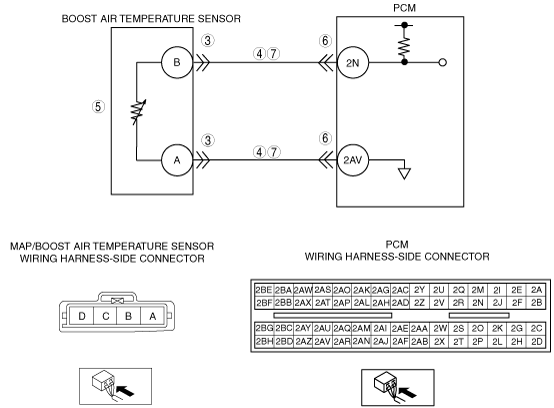

•  Open circuit between MAP/boost air temperature sensor terminal A and PCM terminal 2AV
•  Open circuit between MAP/boost air temperature sensor terminal B and PCM terminal 2N
•  Short to the power circuit between MAP/boost air temperature sensor terminal A and PCM terminal 2AV
•  Short to the power circuit between MAP/boost air temperature sensor terminal B and PCM terminal 2N
•  Connector or terminal malfunction
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has the FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform the repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT MAP/BOOST AIR TEMPERATURE SENSOR CONNECTOR FOR POOR CONNECTION
•  Turn the ignition switch off.
•  Disconnect the MAP/boost air temperature sensor connector.
•  Inspect for poor connection (damaged, pulled-out pins, corrosion, etc.).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 8.
No
Go to the next step.
4
INSPECT MAP/BOOST AIR TEMPERATURE SENSOR CIRCUIT FOR SHORT TO POWER SUPPLY
•  Turn the ignition switch to the ON position (Engine off).
•  Measure the voltage between the following terminals:
―  MAP/boost air temperature sensor terminal B (wiring harness-side) and body ground
―  MAP/boost air temperature sensor terminal A (wiring harness-side) and body ground
•  Is the voltage B+?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 8.
No
Go to the next step.
5
INSPECT BOOST AIR TEMPERATURE SENSOR
•  Inspect the boost air temperature sensor connector.
•  Is there any malfunction?
Yes
Replace the MAP/boost air temperature sensor, then go to Step 8.
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION[L3 Turbo].)
No
Go to the next step.
6
INSPECT PCM CONNECTOR FOR POOR CONNECTION
•  Turn the ignition switch off.
•  Disconnect the PCM connector.
•  Inspect for poor connection (damaged, pulled-out pins, corrosion, etc.).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 8.
No
Go to the next step.
7
INSPECT MAP/BOOST AIR TEMPERATURE SENSOR CIRCUIT FOR OPEN CIRCUIT
•  Turn the ignition switch off.
•  Measure the voltage between the following terminals:
―  MAP/boost air temperature sensor terminal B (wiring harness-side) and PCM terminal 2N (wiring harness-side)
―  MAP/boost air temperature sensor terminal A (wiring harness-side) and PCM terminal 2AV (wiring harness-side)
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit, then go to the next step.
8
VERIFY TROUBLESHOOTING OF DTC P0098 COMPLETED
•  Make sure to connect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine.
•  Is the same DTC present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION[L3 Turbo].)
No
Go to the next step.
9
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE[L3 Turbo].)
No
DTC troubleshooting completed.
