DTC P0328[L3 Turbo]

id0102b7806800

DTC P0328

Knock sensor circuit high input
DETECTION CONDITION
•  PCM monitors the input signal from the knock sensor when the engine is running. If the input voltage at the PCM terminals between 2V and 2U is above 4.9 V, the PCM determines that the knock sensor circuit has a malfunction.
Diagnostic support note
•  This is a continuous monitor (CCM).
•  MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
•  FREEZE FRAME DATA is available.
•  DTCs are stored in the PCM memory.
POSSIBLE CAUSE
•  Knock sensor malfunction
•  Connector or terminal malfunction

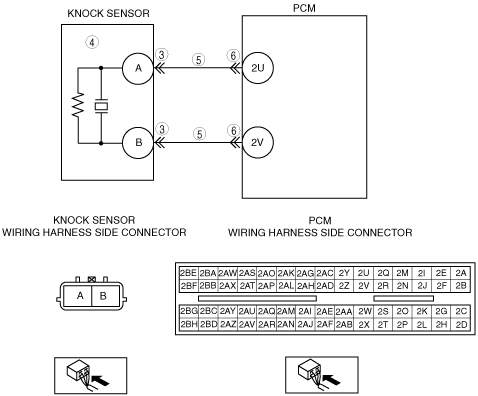

•  Short to the power supply in the wiring harness between knock sensor terminal A and PCM terminal 2U
•  Short to the power supply in the wiring harness between knock sensor terminal B and PCM terminal 2V
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has the FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform the repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT KNOCK SENSOR CONNECTOR TERMINAL FOR POOR CONNECTION
•  Turn the ignition switch off.
•  Disconnect the knock sensor connector.
•  Inspect for poor connection at terminals A and B (such as damaged, pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair terminal, then go to step 7.
No
Go to the next step.
4
INSPECT KNOCK SENSOR
•  Perform the knock sensor inspection.
•  Is the knock sensor normal?
Yes
Go to the next step.
No
Replace the knock sensor, then go to step 7.
5
INSPECT KNOCK SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
•  Turn ignition switch to the ON position (Engine off).
•  Measure the voltage between knock sensor terminal A (harness-side) and body ground and knock sensor terminal B (harness-side) and body ground.
•  Is there any voltage?
Yes
Repair or replace the wiring harness for a short to the power supply, then go to step 7.
No
Go to the next step.
6
INSPECT PCM CONNECTOR FOR POOR CONNECTION
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to the next step.
No
Go to the next step.
7
VERIFY TROUBLESHOOTING OF DTC P0328 COMPLETED
•  Make sure to connect all disconnected connectors.
•  Turn ignition switch to the ON position (Engine off).
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine and warm it up completely.
•  Is same DTC present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION[L3 Turbo].)
No
Go to the next step.
8
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “After Repair Procedure”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE[L3 Turbo].)
No
Troubleshooting completed.
