VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [L3 Turbo]

id0110b3801100

Caution

•  Remove the variable valve timing actuator and camshaft sprocket as a single unit.

Note

•  The variable valve timing actuator and camshaft sprocket cannot be disassembled.

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 Turbo].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L3 Turbo].)

3.  Remove the splash shield (RH).

4.  Remove the charge air cooler. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)

5.  Remove the high pressure fuel pump. (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION[L3 Turbo].)

6.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION[L3 Turbo].)

7.  Disconnect the wiring harness.

8.  Remove the ventilation hose.

9.  Remove the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION[L3 Turbo].)

10.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION[L3 Turbo].)

11.  Remove the engine front cover lower blind plug.

beleue00000039

12.  Remove the engine front cover upper blind plug.

beleue00000040

13.  Remove the cylinder block lower blind plug, and install the SST.

am3zzw00016562

14.  Rotate the crankshaft in the direction of the engine rotation so that the No.1 piston is at TDC of the compression stroke. (Until the counterweight contacts SST and stops.)

15.  Loosen the timing chain using the following procedure:

Note

•  Verify the ratchet position using the mirror before servicing. If the ratchet is not tilted, remove the engine front cover before performing the procedure.

•  If the timing chain tension cannot be released with the ratchet tilted, remove the engine front cover before performing the procedure.

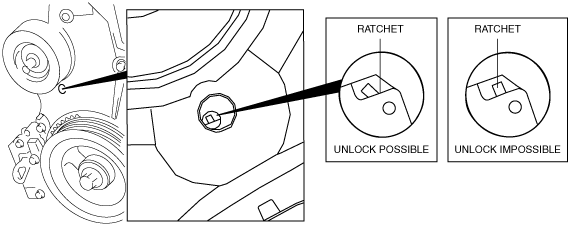

Ratchet unlock position

beluce00000013

(1)  Insert a suitable bolt (M6 X 1.0, length 25—35 mm {0.99—1.3 in}) into the engine front cover upper blind plug and tighten it until it contacts the chain tensioner arm, and then rotate it back one turn. (Set the bolt slightly away from the chain tensioner arm so that it does not contact it.)

beleue00000041

(2)  Using the cast hexagon on the exhaust camshaft, apply force counterclockwise to facilitate unlocking the chain tensioner ratchet.

am8rrw00002539

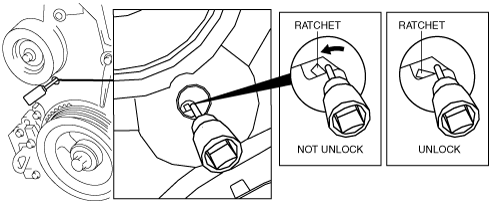

(3)  Using a Hex bit socket (2.5 mm {0.098 in}) or T15 Torx bit socket, unlock the chain tensioner ratchet so that it can be lifted up.

beltze00000124

(4)  Using the cast hexagon on the exhaust camshaft, apply force in the direction of the engine rotation to increase tension on the chain.

am8rrw00002541

Note

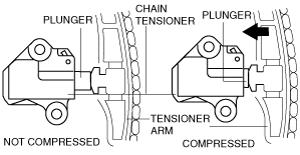

•  The chain tensioner rack is compressed using the chain tension generated by applying force to the exhaust camshaft in the direction of the engine rotation.

acxaaw00001397

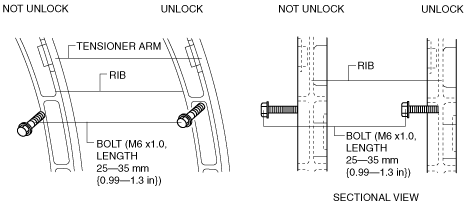

(5)  Screw in the bolt set in Step 1 approx. 5 mm {0.2 in} and secure the tensioner arm with the rack compressed.

Note

•  The ratchet has not been unlocked if the bolt cannot be pressed in approx. 5 mm {0.2 in}.

am3zzw00016563

•  If the tensioner arm cannot be secured, return the bolt to its original position and repeat the procedure from Step 3.

16.  Fix the exhaust camshaft using a wrench on the cast hexagon, and loosen the camshaft sprocket bolt.

am3zzw00016564

17.  Remove the exhaust camshaft sprocket bolt, exhaust camshaft sprocket, and washer as a single unit.

beleue00000044

Caution

•  Perform the work carefully so that the washer does not drop out.

18.  Remove the oil control valve (OCV). (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION[L3 Turbo].)

19.  Loosen the camshaft cap bolts in two or three passes in the order shown in the figure and remove the camshaft cap.

am3zzw00007228

Note

•  The camshaft caps are to be kept ordered for correct reassembly in their original positions. Do not mix the caps.

20.  Remove the variable valve timing actuator and the camshaft on the intake air side as a single unit.

21.  Remove the variable valve timing actuator.

(1)  Place alignment marks on the camshaft and variable valve timing actuator as shown in the figure so that the variable valve timing actuator is re-assembled in its original position.

am3zzw00016565

(2)  Fix the camshaft in a vise.

am3zzw00016566

(3)  Loosen the variable valve timing actuator installation bolt.

22.  Install a new washer.

am3zzw00016567

23.  Install the variable valve timing actuator.

Note

•  When newly replacing the variable valve timing actuator, place alignment marks on the new part in the same position as the old actuator.

•  If the alignment marks on the variable valve timing actuator are not available, refer to the “TIMING CHAIN ASSEMBLY” in the engine workshop manual and perform the sprocket position alignment again.

(1)  Fix the camshaft in a vise.

(2)  Align the marks on the camshaft and the variable valve timing actuator.

(3)  Tighten the variable valve timing actuator installation bolt.

Tightening torque

69—75 N·m {7.1—7.6 kgf·m, 51—55 ft·lbf}

24.  Verify that the No.1 cylinder is at TDC of the compression stroke. (The position counterweight contacts the SST.)

25.  Apply the gear oil (SAE No. 90 or equivalent) to each journal of the cylinder head as shown in the figure.

am3zzw00007406

26.  With No.1 cylinder cam aligned at TDC of the compression stroke, install the variable valve timing actuator and the camshaft on the intake air side as a single unit.

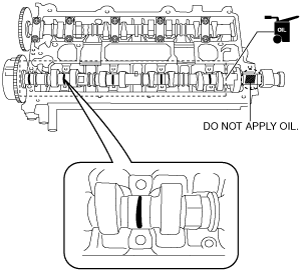

27.  Apply the gear oil (SAE No. 90 or equivalent) to each journal of the camshaft as shown in the figure. However, do not apply it to the end journal of the intake camshaft.

acxaaw00001604

28.  Carefully apply sealant agent (Loctite 518 or 962) to the area indicated in the figure so that it does not leak into the sliding part then, apply the gear oil (SAE No. 90 or equivalent) to the journal.

beltze00000119

Note

•  To prevent engine oil leakage, apply sealant to the rear camshaft cap on the intake side and seal the journal.

29.  Temporarily tighten the camshaft cap bolts evenly in 2—3 steps.

30.  Tighten the camshaft cap bolts in the order shown in the following two steps.

am3zzw00007232

31.  Install the OCV. (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION[L3 Turbo].)

32.  Install the timing chain, exhaust camshaft sprocket bolt, exhaust camshaft sprocket, and a new washer as a single unit.

acxuuw00002958

Caution

•  Install a washer to the fourth or fifth thread of the exhaust camshaft sprocket bolt being careful not to drop the washer.

•  Do not tighten the camshaft sprocket bolt at this stage. Verify the valve timing before performing the bolt tightening.

33.  Install the SST on the camshaft as shown in the figure.

am3zzw00016568

34.  Remove the installation bolt for the engine front cover upper blind plug (M6 X 1.0 length 25—35mm {0.99—1.3 in}), and apply tension to the timing chain.

35.  Rotate the crankshaft clockwise and verify that the No.1 cylinder is at TDC of the compression stroke. (The position counter weight contacts the SST.)

36.  Remove the SST from the camshaft.

37.  Remove the SST installed in the cylinder block lower blind plug hole.

38.  Rotate the crankshaft clockwise two turns and inspect the valve timing.

•  If not aligned, loosen the camshaft sprocket bolt and repeat the procedure from Step 33.

39.  Apply the silicone sealant and install the engine front cover upper blind plug.

am3zzw00005648

Note

•  Install the engine front cover upper blind plug before the applied silicone sealant starts to harden.

40.  Install the cylinder block lower blind plug.

am3zzw00016569

41.  Install a new engine front cover lower blind plug.

beleue00000039

42.  Install the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION[L3 Turbo].)

43.  Install the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION[L3 Turbo].)

44.  Install the ventilation hose.

45.  Connect the wiring harness.

46.  Install the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION[L3 Turbo].)

47.  Install the high pressure fuel pump. (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION[L3 Turbo].)

48.  Install the charge air cooler. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3 Turbo].)

49.  Install the splash shield (RH).

50.  Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L3 Turbo].)

51.  Install the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 Turbo].)
